VQ Models Cessna L-19 Bird Dog 67.7IN VQA160OL

Description

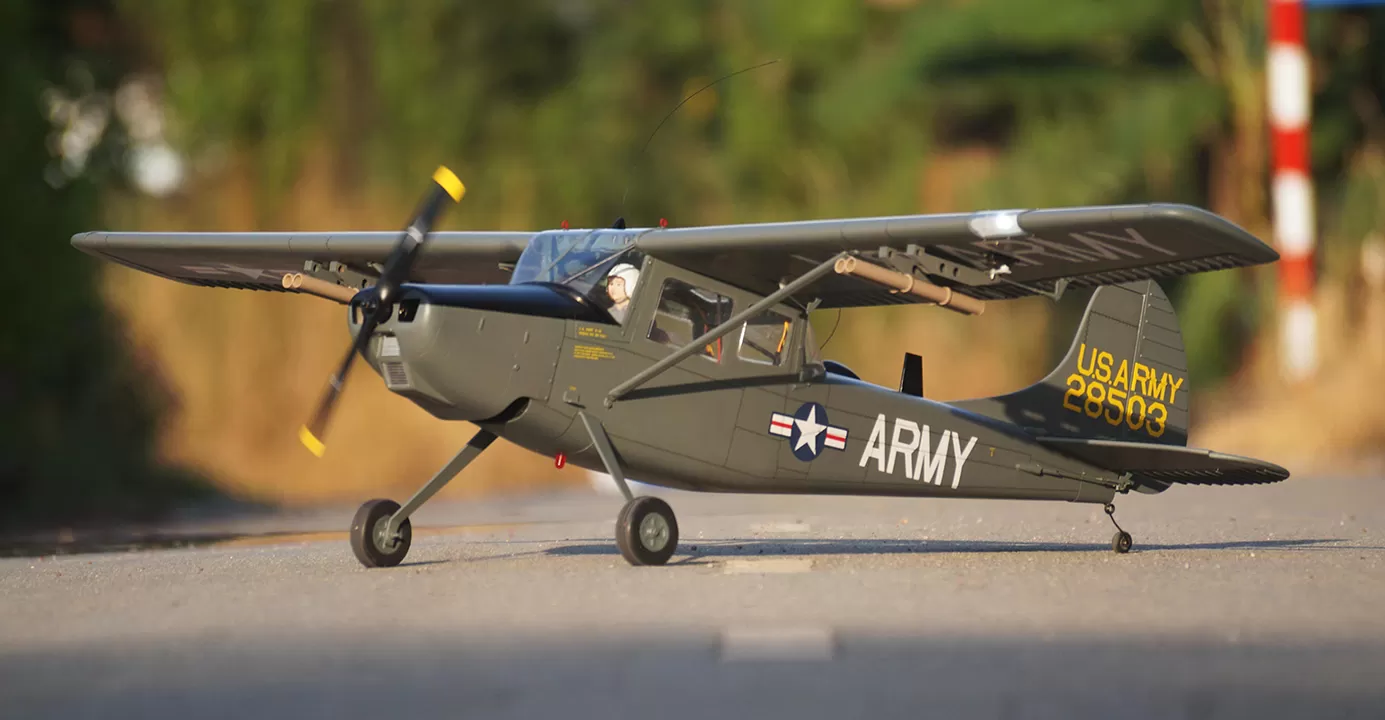

VQ Models Cessna L-19 Bird Dog 67.7IN VQA160OL

The Cessna L-19/O-1 Bird Dog is a liaison and observation aircraft. It was the first all-metal fixed-wing aircraft ordered for and by the United States Army following the Army Air Forces’ separation from it in 1947. The Bird Dog had a lengthy career in the U.S. military, as well as in other countries.

The L-19 received the name Bird Dog as a result of a contest held with Cessna employees to name the aircraft. The winning entry, submitted by Jack A. Swayze, an industrial photographer, was selected by a U.S. Army board. The name was chosen because the role of the army’s new aircraft was to find the enemy and orbit overhead until artillery (or attack aircraft) could be brought to bear on the enemy. While flying low and close to the battlefield, the pilot would observe the exploding shells and adjust the fire via his radios, in the manner of a bird dog (gun dog) used by game hunters.

Now, VQ are introducing the Cessna L-19 Bird Dog .55 size EP-GP as a super-scale series (S3). This L-19 Bird Dog comes with 2 scale flaps, 1 x 3D printed and painted pilots (Full Body), 2 x 3D printed and painted scale seats, scale cockpit and antenna. In addition, the pilot door can be opened and closed, making your L-19 look like the real thing. With a large battery hatch, you can use either an Electric motor or a Nitro motor. Optional Navigation light and landing light with super led light (VQA-L) to complete the look of the Cessna L-19 Bird Dog.

FEATURES
Fully covered in weathered detail
All balsa and lite-ply construction
Fibreglass cowling
Control surfaces pre -hinged and installed
3D printed painted pilot (Full body)
3D printed scale seat
3D printed scale detail
Bottom cargo hatch can easy move
Two pieces wing with Aluminium wing joiner
Landing light and navigation light system (Optional)

INCLUDES
Assembly instructions with stage photos
Scale plastic nose gear
1 x 3D printed Painted pilot (Full body)
2 x 3D printed scale seat
Wheels
Painted aluminium landing gear
Engine mounts and ply wood motor mount
Fuel tank
Fibreglass cowling
Aluminium wing joiner
Decals and all hardware

OPTIONAL PARTS
Navigation and landing light set (VQA-L)

REQUIRED HARDWARE (NOT SUPPLIED)
Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).

RECOMMENDED HARDWARE (NOT SUPPLIED)
Electric Motor & ESC: Electrospeed Boost 50 Power Pack (ELE008)

Servos: 2 x MG5510DS 9.98Kg.cm/0.12s Standard Size Digital Servo and 4 (or 5 for GP) x MacGregor MG1703DS 3.3Kg.cm/0.10s Mini Digital Servo

IC Engine: Saito FA-82B Four-Stroke Glow Engine

SPECIFICATIONS
Wingspan: 1720mm (67.7in)
Fuselage Length: 1190mm (46.85in)
Weight: 3.5kg – 3.8kg
Engine: .55 (2-stroke) or .72 – .82 (4-stroke)
Propeller: 13 x 6 – 14 x 6
Radio: 6-Channels with 7 (6 for EP) Servos (2 x standard servo for Elevator/Rudder, 4 x 19g servo Aileron/Flap, 1 x 19g servo for throttle)
Electric Motor: Boost 50 motor or any Electric Motor same size as .55 2-stroke engine
Battery: Lipo 14.8V 4500-5500 mAh

Specification

Aircraft Type	Scale
Assembly	ARTF & PNP
Brand	VQ Models
Power	Electric, Engine
