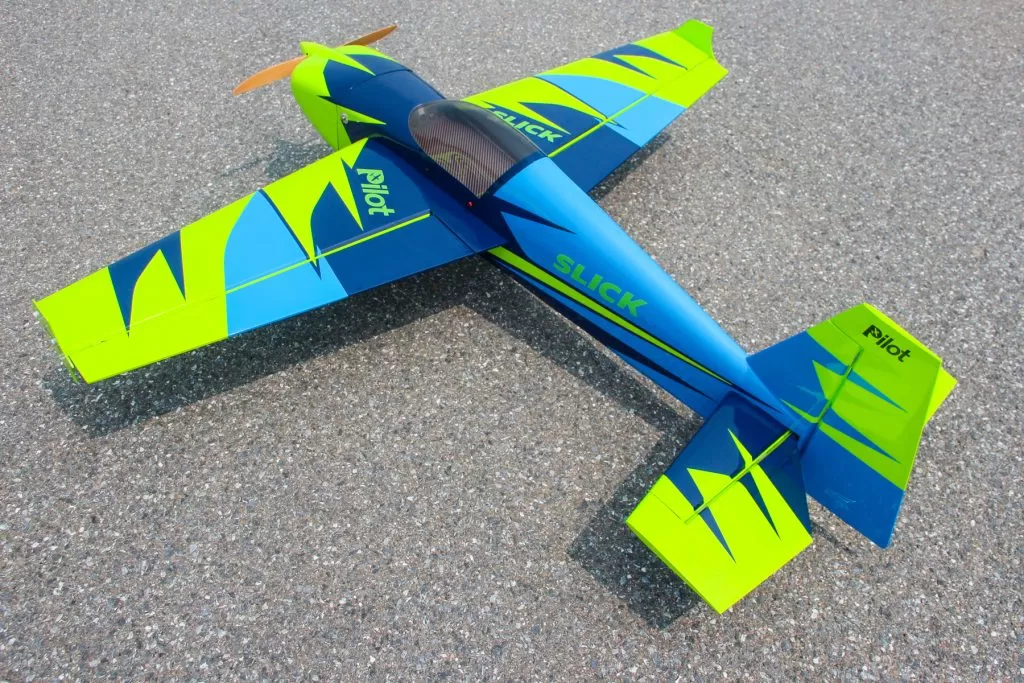

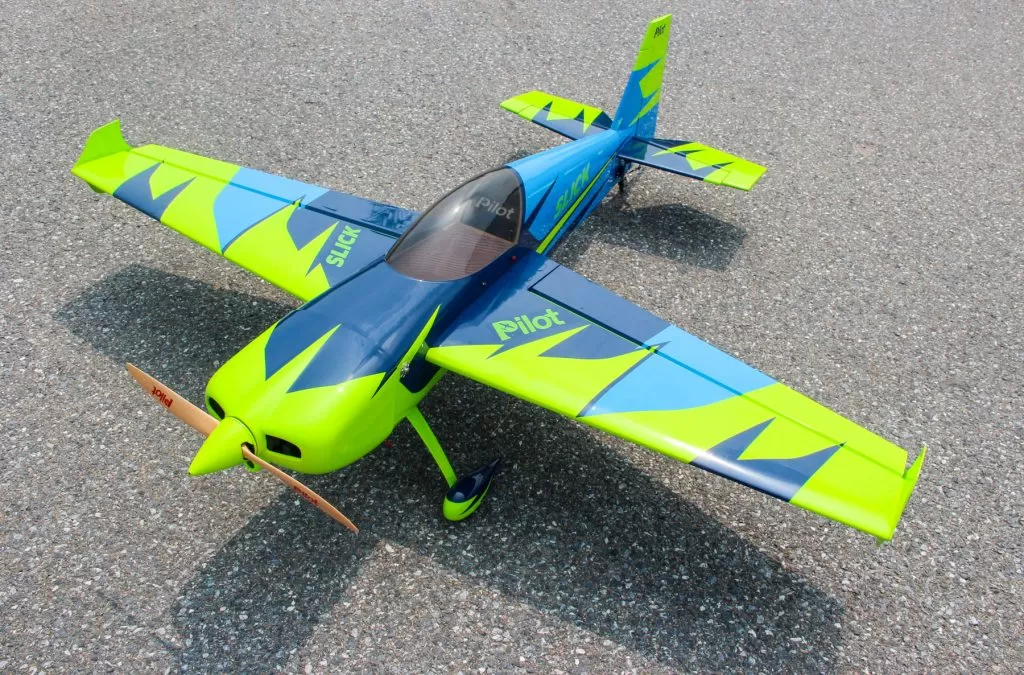

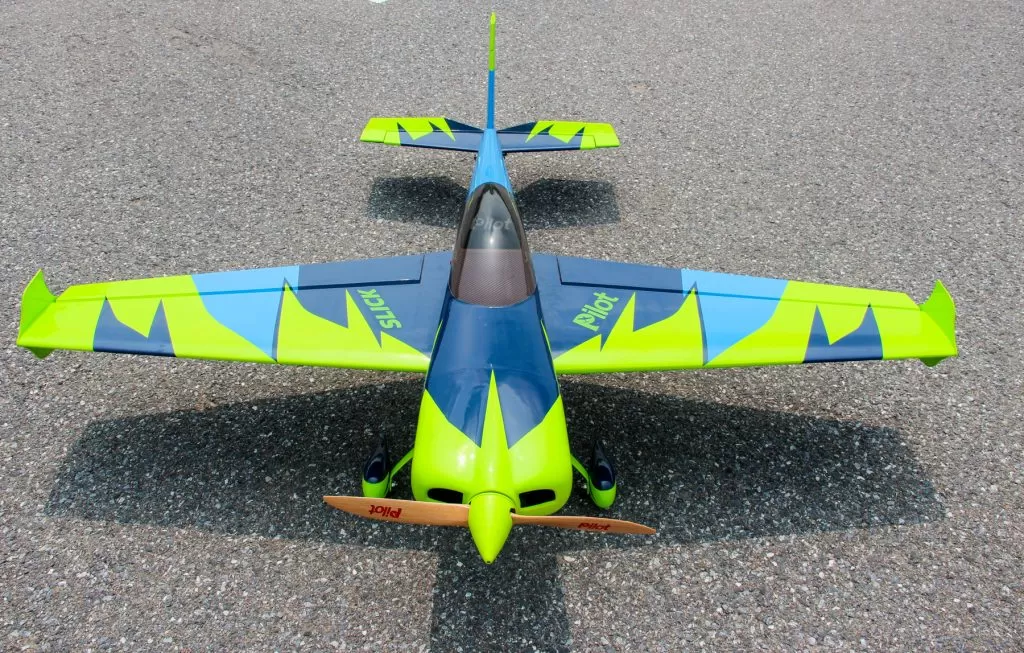

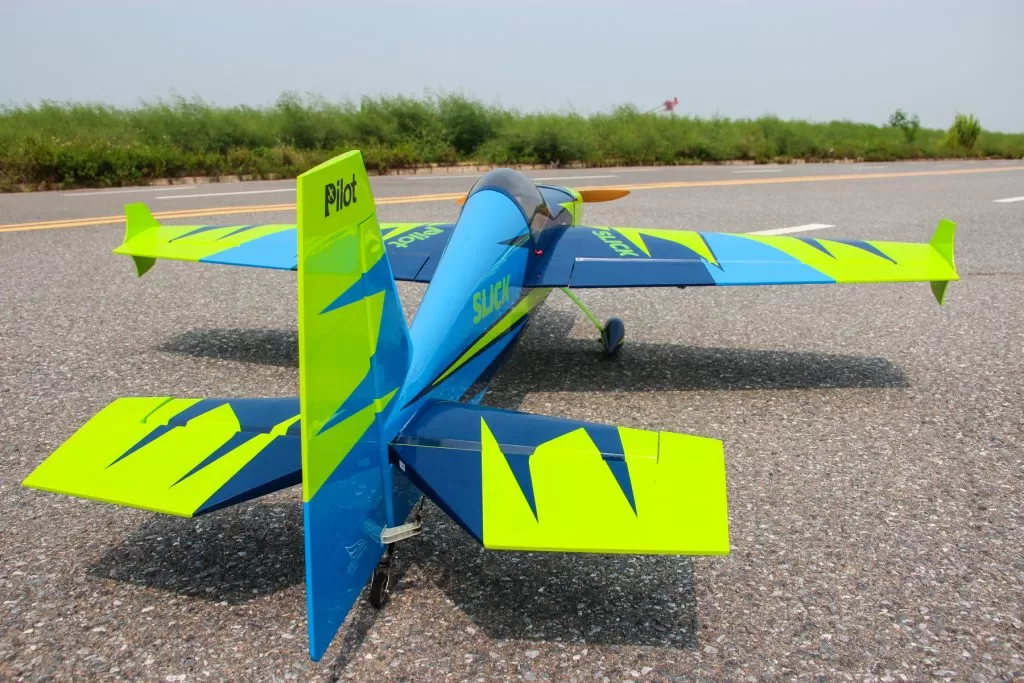

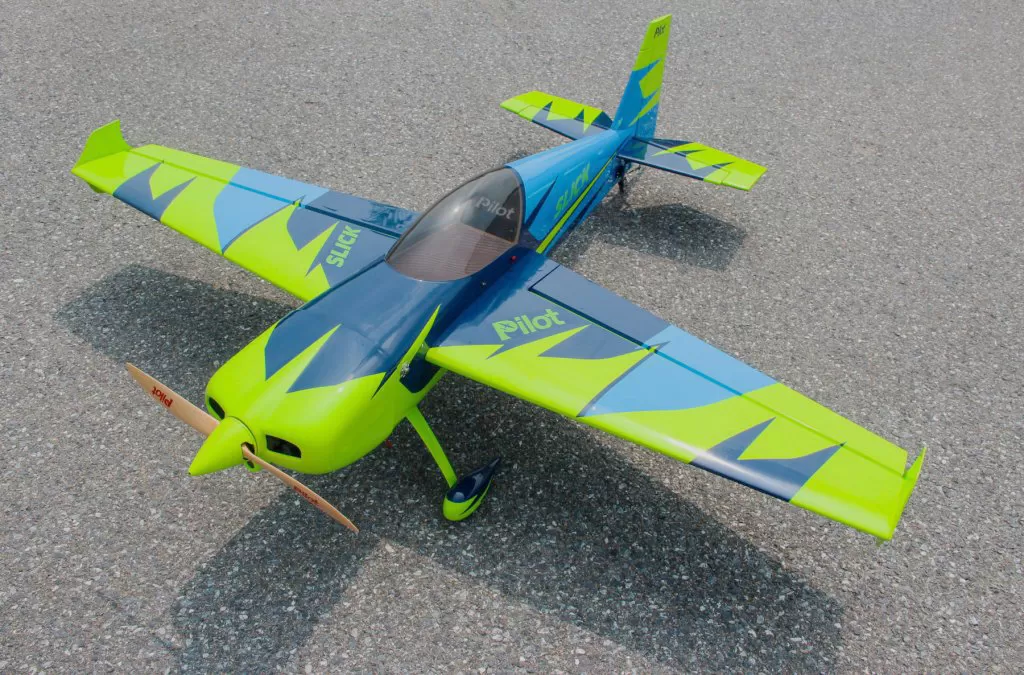

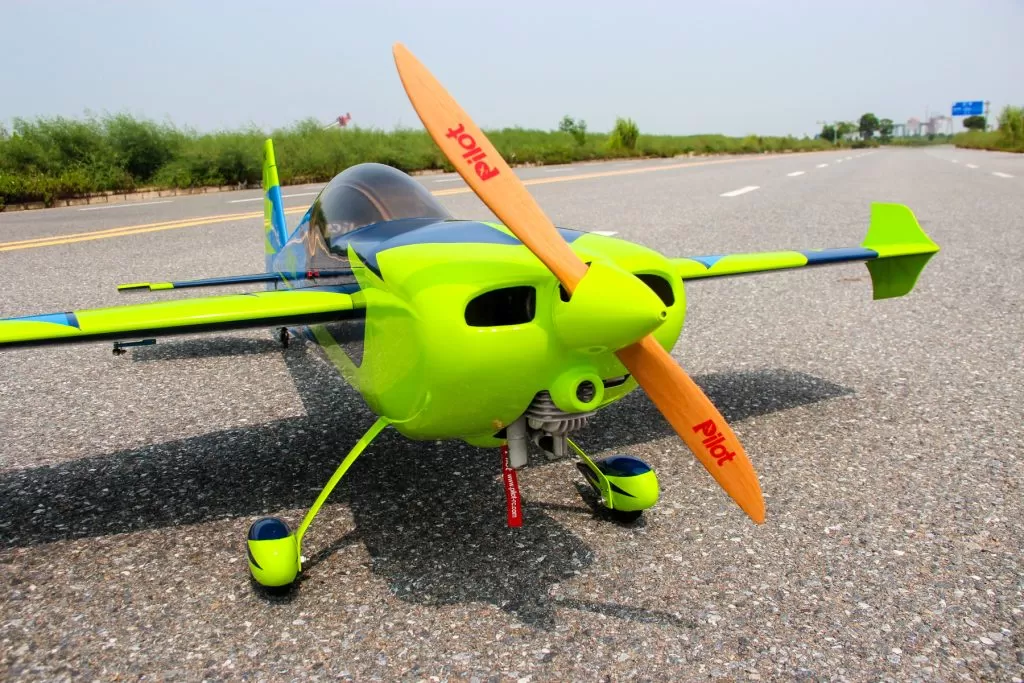

Pilot-RC Slick 74IN 02 (Blue/Green) PIL662

Description

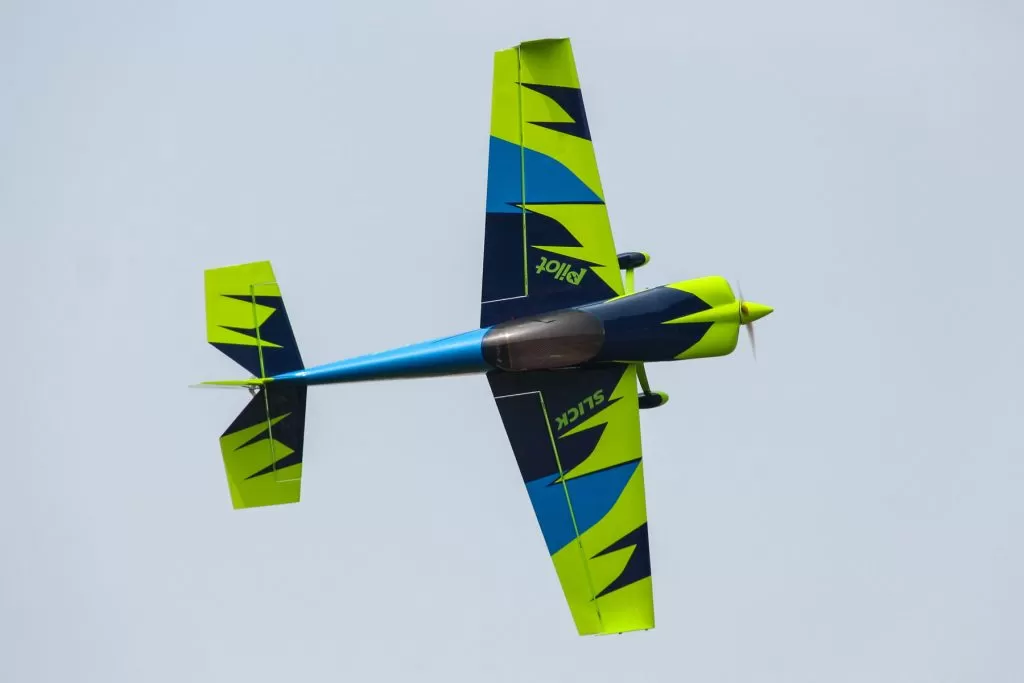

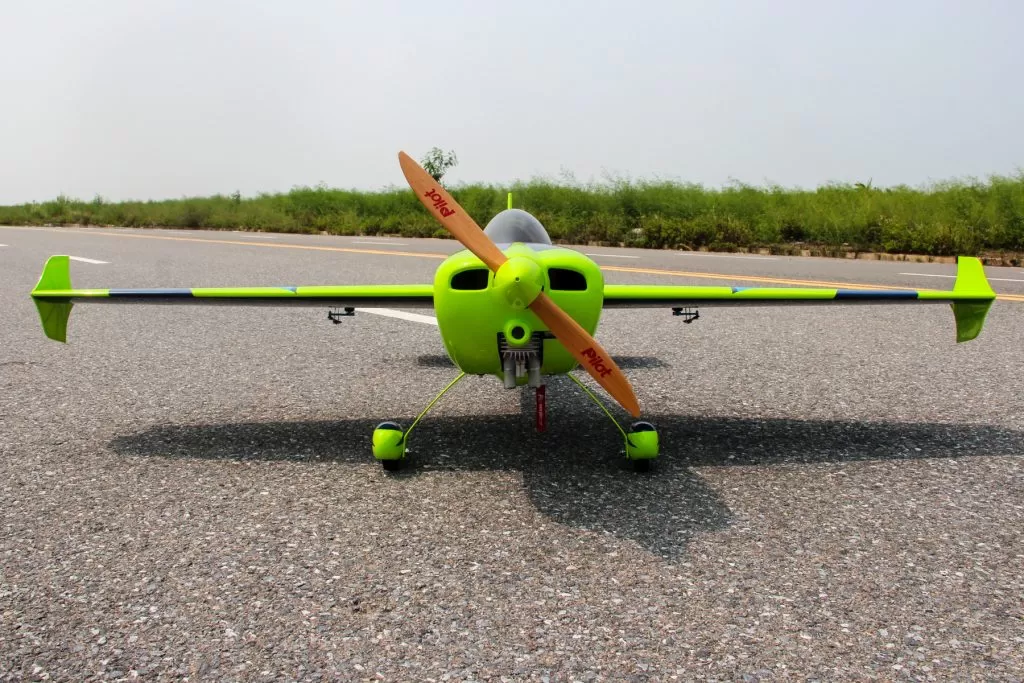

Pilot-RC Slick 74IN 02 (Blue/Green) PIL662

Pilot RC already surprised everyone with a new level of precision and agility with our extremely popular Laser. We have now taken all these great features and grown them into our new Slick.

The Pilot RC Slick, as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design, it once again flys as good as it looks, and that is really saying something!
All the crazy agility and manoeuvrability of the Laser, while keeping the friendly flying characteristics of Pilot RC planes, the new Slick offers an even further improvement in precision and aero musical performance, feeling like a larger plane, a larger plane that can go nuts!

SPECIFICATIONS
Model: Slick – 74in
Wingspan: 74in (1.88mm)
Length: 70.6in (1.79mm)
Wing area: 1,081sq in (6,978sq cm)
Weight: 11.4lbs (5.2kg)

Pilot-RC Slick 74IN 02 Features

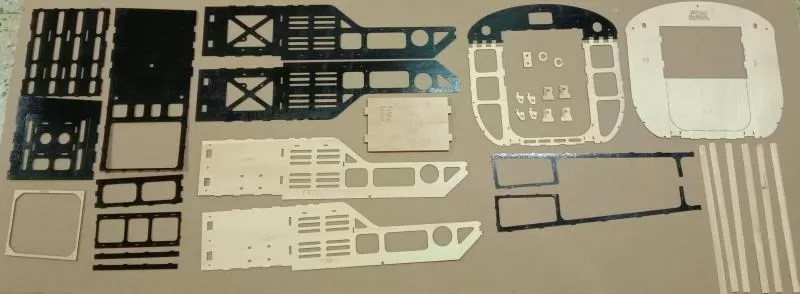

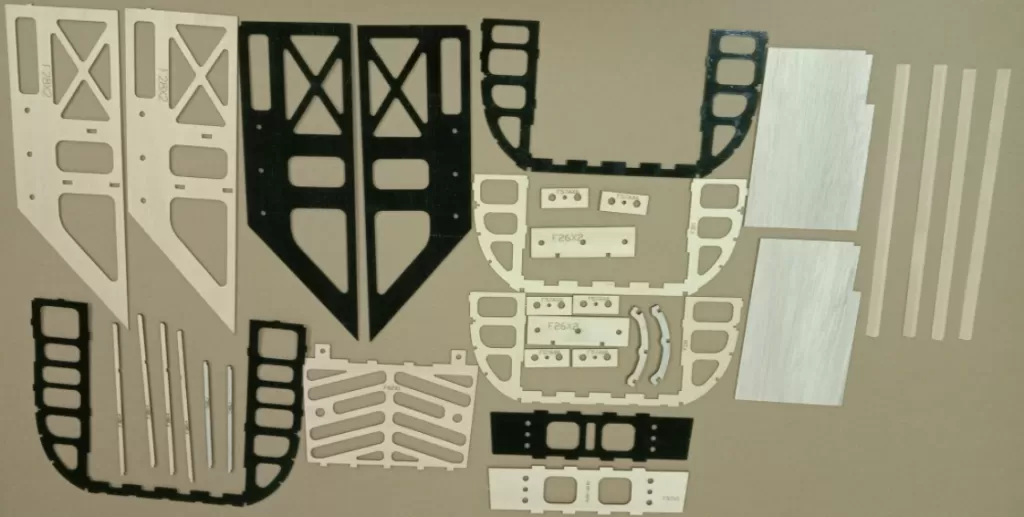

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings and SFG.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed aileron and elevator hinges (glued and pinned)
Easy canister installation due to open construction
Removable wings
One piece stabiliser
Laser engraved motor mounting position
Pull-Pull system for Rudder servo
Cowl fits both gasoline and electric motors
Pilot-RC Slick 74IN

INCLUDED HARDWARE
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner

Required:
Motor: 30-40cc or equivalent electric
Servos: 4 high torque plus throttle // Uses x2 per aileron, x1 for elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

RECOMMENDED HARDWARE:
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: Pilot-RC 1.6in Aluminium arms (PIL302)
Engine: DLE-35RA Two-Stroke Petrol Engine or DLE-40 Twin Two-Stroke Petrol Engine
Wingbags: Pilot-RC Wing Bag for 35cc Aerobatic Plane
Pilot-RC Slick, if you liked our Laser you are going to love the Slick!!

BUILD INFORMATION
Pilot-RC Slick Cowl Size
A: 252mm – B: 238mm – C: 245mm – D: 255mm

Pilot-RC Slick Exhaust Tunnel Size
A: 253mm – B: 83mm – C: 253mm – D: 87mm – E: 129mm

Pilot-RC Slick Rudder Horns and Pull Pull Location
A: 80mm – B: 112mm – C & D: 16mm (same horn for pull pull or push pull)

SERVO EXTENSION LENGTHS
Throttle: No extension required
Each aileron: 15cm (to reach receiver direct)
Elevator: 67cm
Rudder: Pull Pull, no required extension)

CENTRE OF GRAVITY:
136mm – Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

For information on Local Clubs or news within the flying world BMFA, click the highlighted tabs.

Specification

Aircraft Type	Sports & 3D
Assembly	ARTF & PNP
Brand	Pilot RC
Power	Electric, Engine
