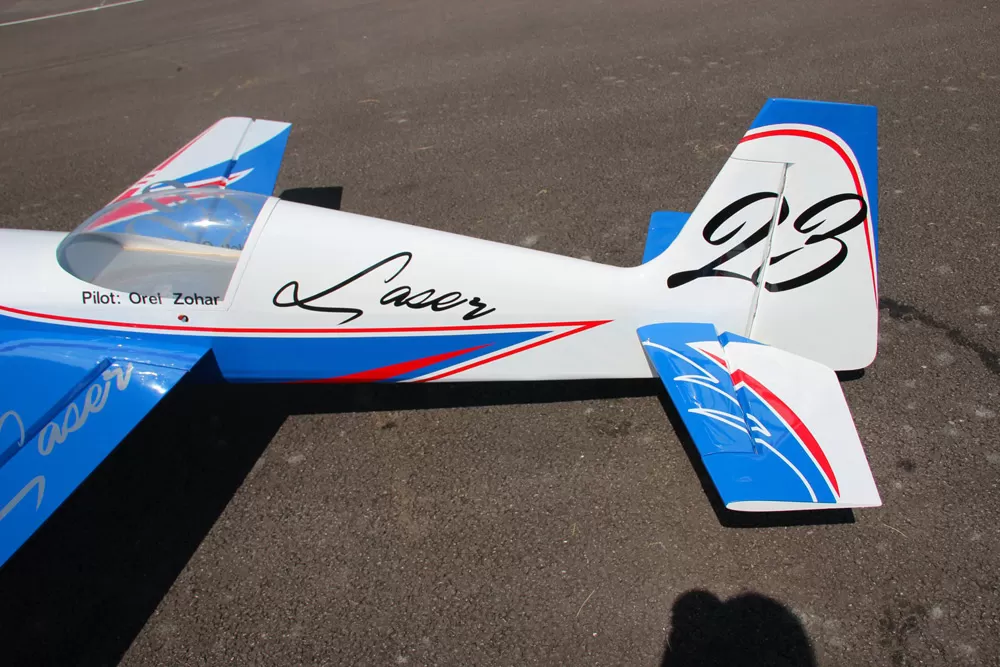

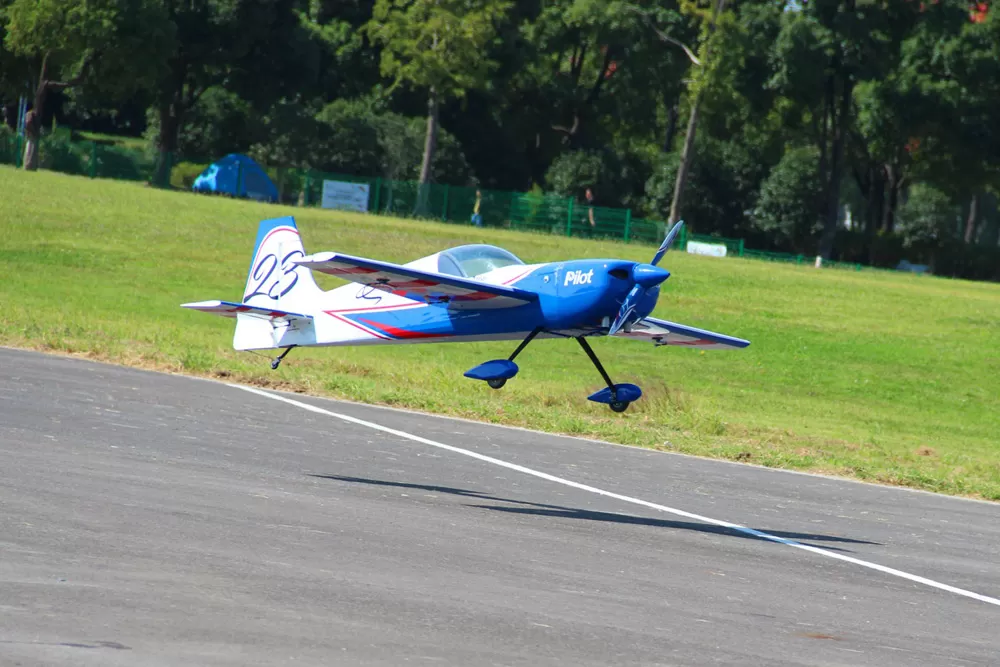

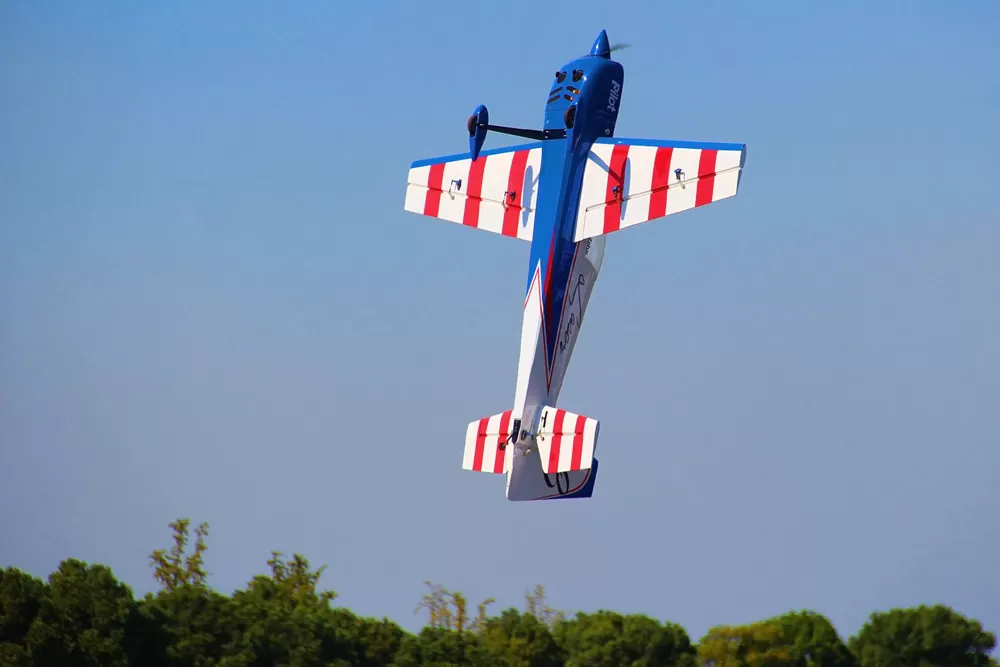

Pilot-RC Laser 88IN 02 (Blue/Red/White) PIL620

Description

Pilot-RC Laser 88IN 02 (Blue/Red/White) PIL620

FEATURES:
NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
NEW! Patented quick assembly system for wings and elevators.
NEW! Patented quick assembly system for canopy.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Easy canister installation due to open construction
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position
Push-Pull system and Pull-Pull systems available for Rudder servos

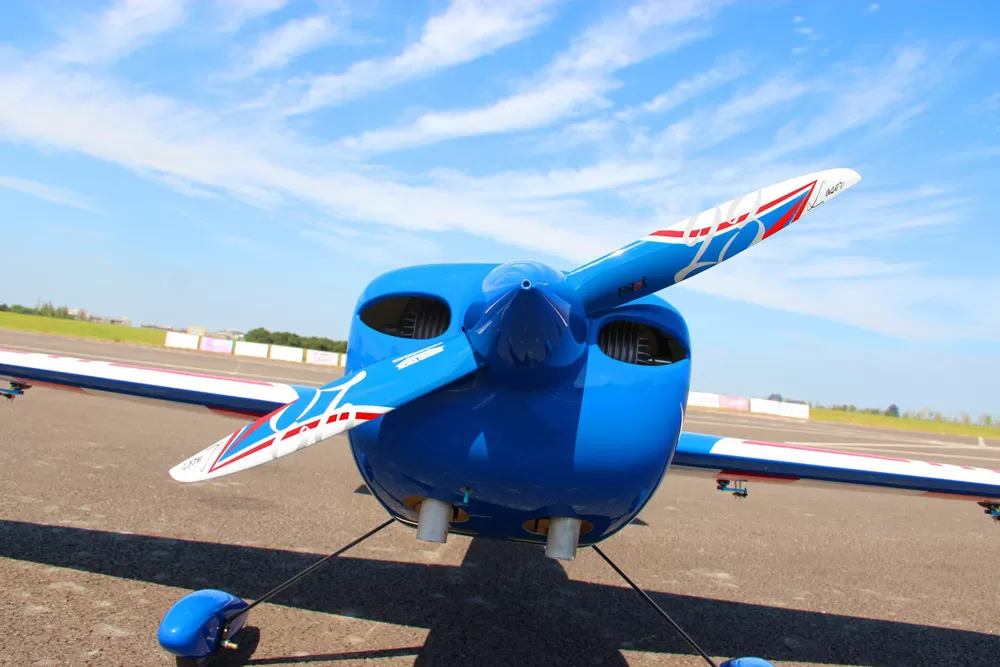

Cowl fits both single cylinder and twin cylinder engines! (DA70, DLE60, GP76)
Due to carbon construction, this kit does not offer Free replacement wood

IT HAS ARRIVED! THE 60CC VERSION OF PILOT-RC’S RULE CHANGING LASER!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.

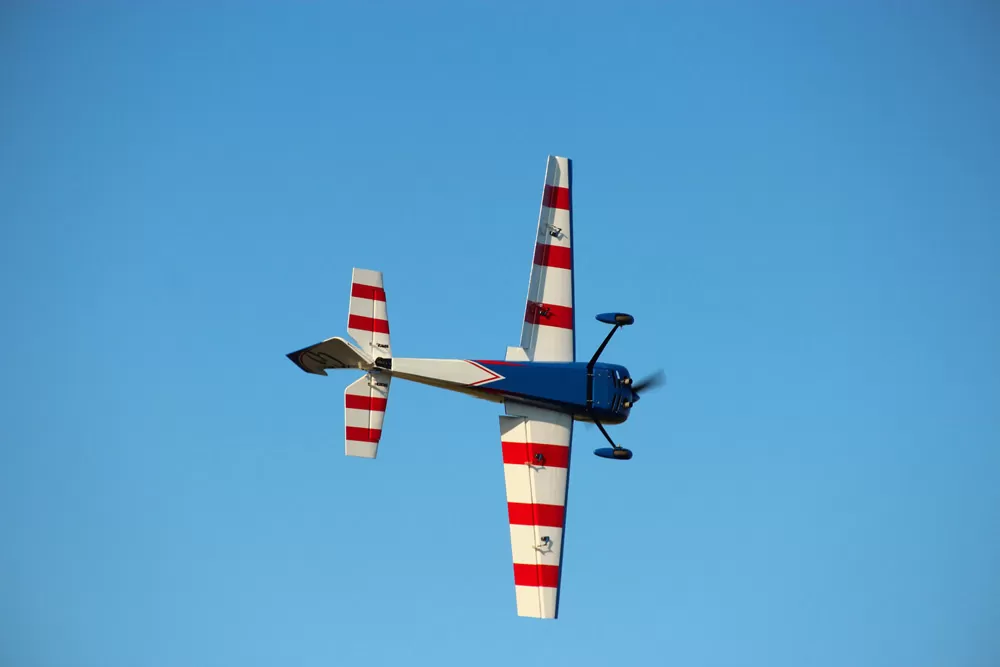

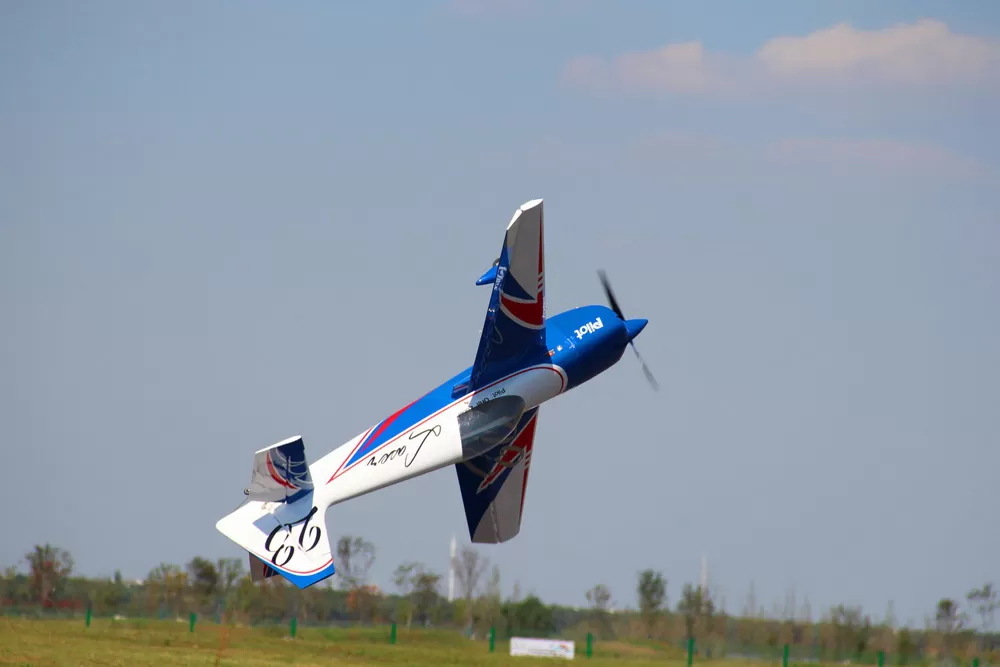

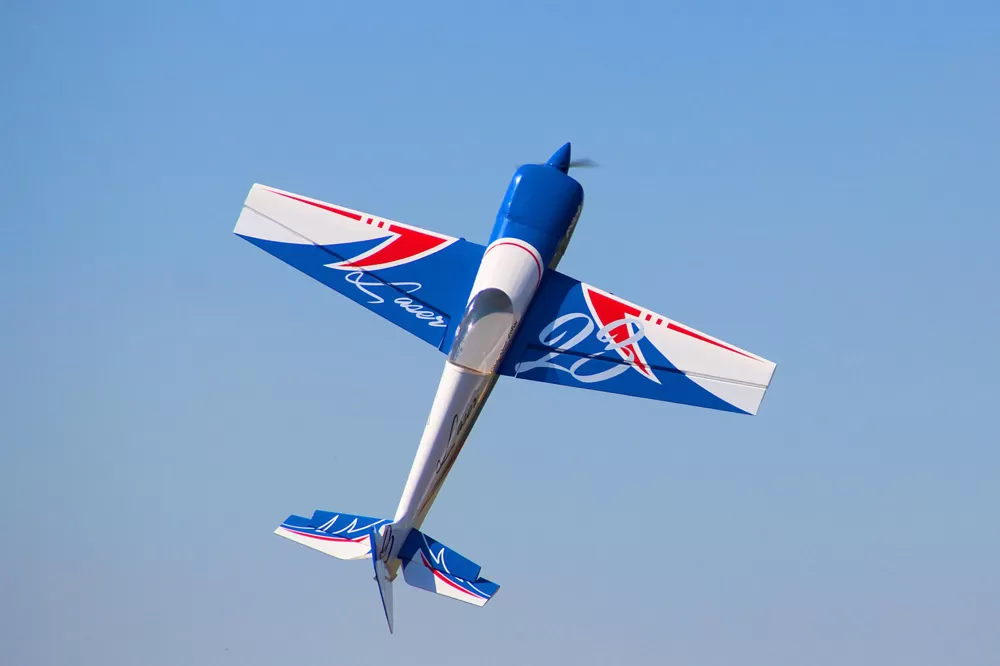

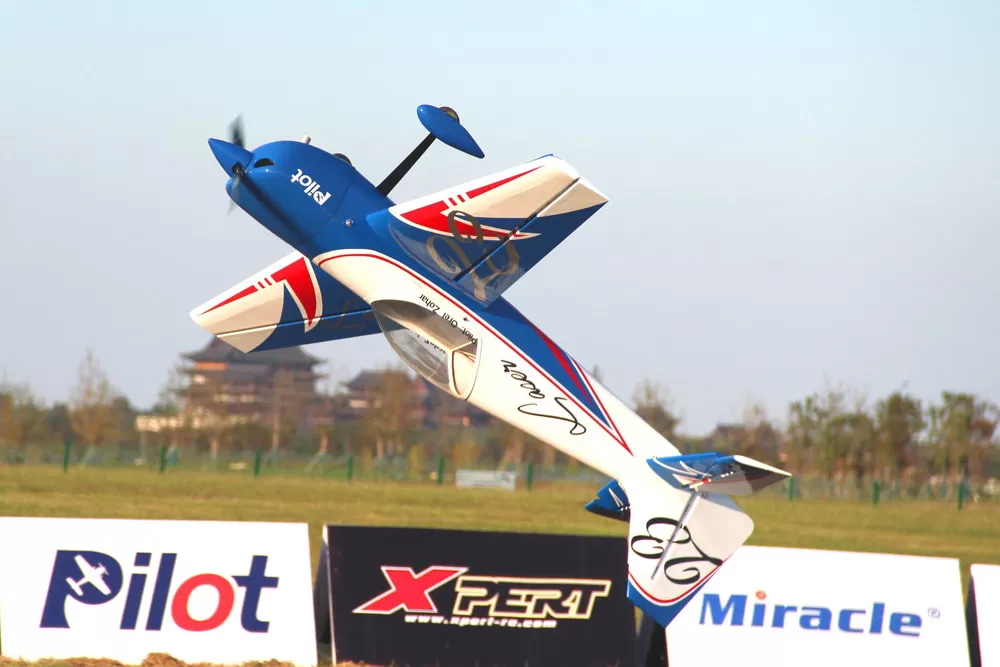

You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

Pilot-RC Laser 88IN 02 SPECIFICATIONS:
Wingspan: 88in (2.240mm)
Length: 83.5in (2.120mm)
Wing area: 1,291sq in (8,330sq cm)
Weight: 17.75lbs (8.0kg) with GP61cc

INCLUDED HARDWARE
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner

REQUIRED HARDWARE (NOT SUPPLIED)
Motor: 50-76cc or equivalent electric
Servos: 5 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 per elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

SERVO EXTENSION LEAD LENGTH REQUIRED:
Rudder Servo Place: Rear of Fuselage
Aileron: 250mm
Elevator: 1350mm
Rudder: 1150mm
Throttle: 300mm

BUILD INFORMATION
Pilot-RC Slick Cowl Size
A: 286mm – B: 292mm – C: 286mm – D: 308mm

Pilot-RC Slick Exhaust Tunnel Size
A: 475mm – B: 106mm – C: Unlimited – D: 104mm – E: 162mm – F: 167mm
Due to the open tunnel design in the Laser, there is no backplate (measurement C) so there is no limit to the length of exhaust that can be used.

Pilot-RC Slick Rudder Horns and Pull Pull Location
A: 29mm – B: 95mm – C: 52mm – D: n/a – E: 8.5mm

SERVO EXTENSION LENGTHS
Throttle: 30cm
Each aileron: 25cm (to reach receiver direct)
Each elevator: 135cm
Rudder: 115cm (when using direct – if installing pull pull, no required extension)

CENTRE OF GRAVITY
164mm – Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

For information on Local Clubs or news within the flying world BMFA, click the highlighted tabs.

Specification

Aircraft Type	Sports & 3D
Assembly	ARTF & PNP
Brand	Pilot RC
Power	Electric, Engine
