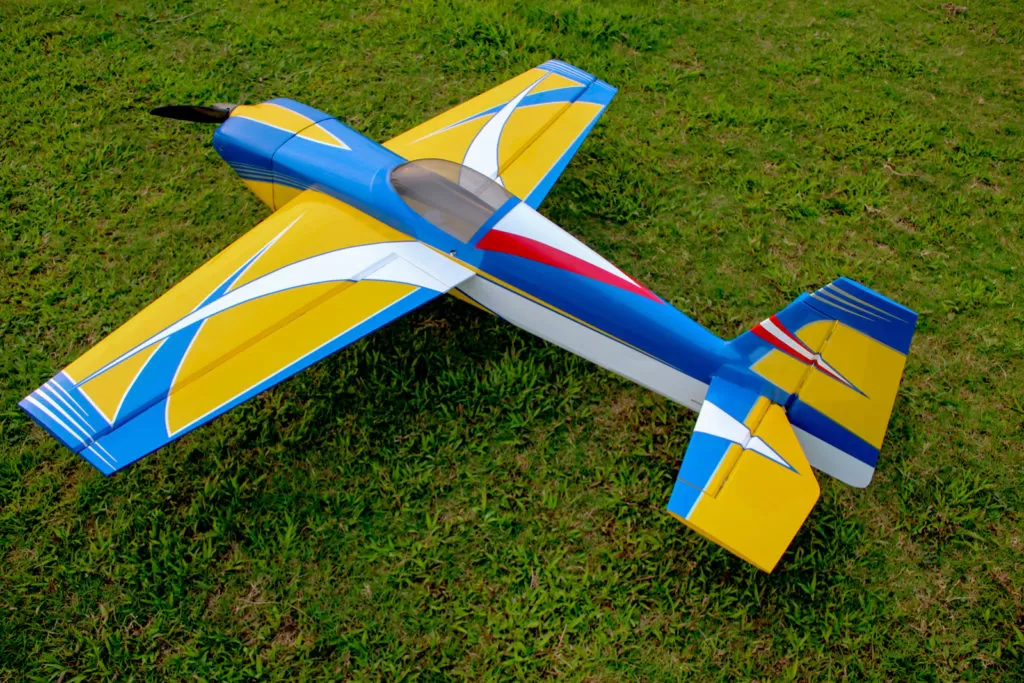

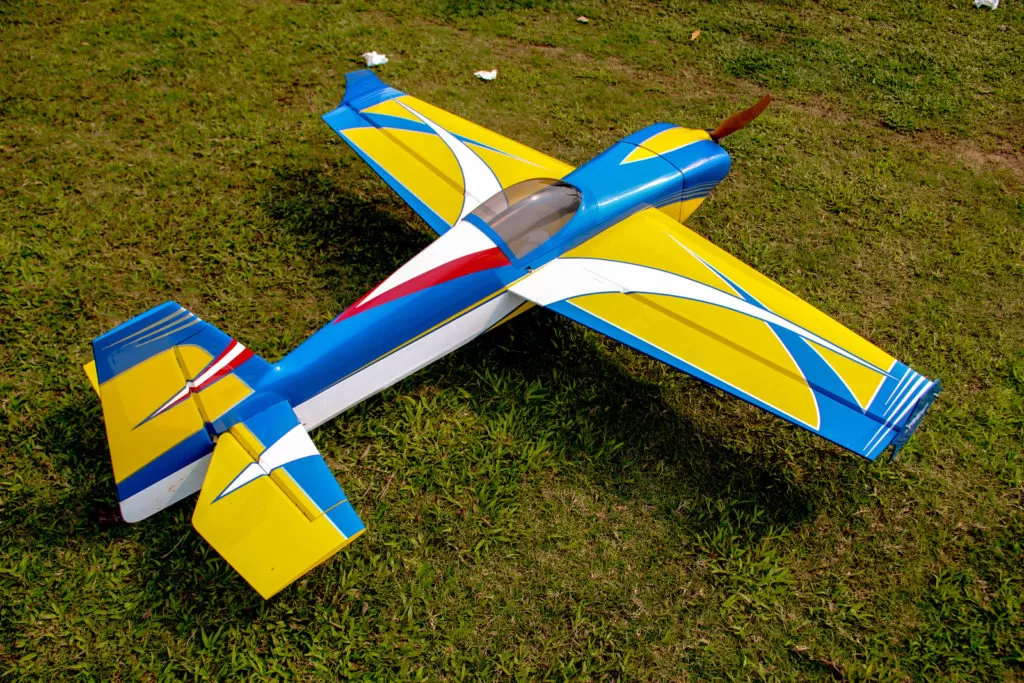

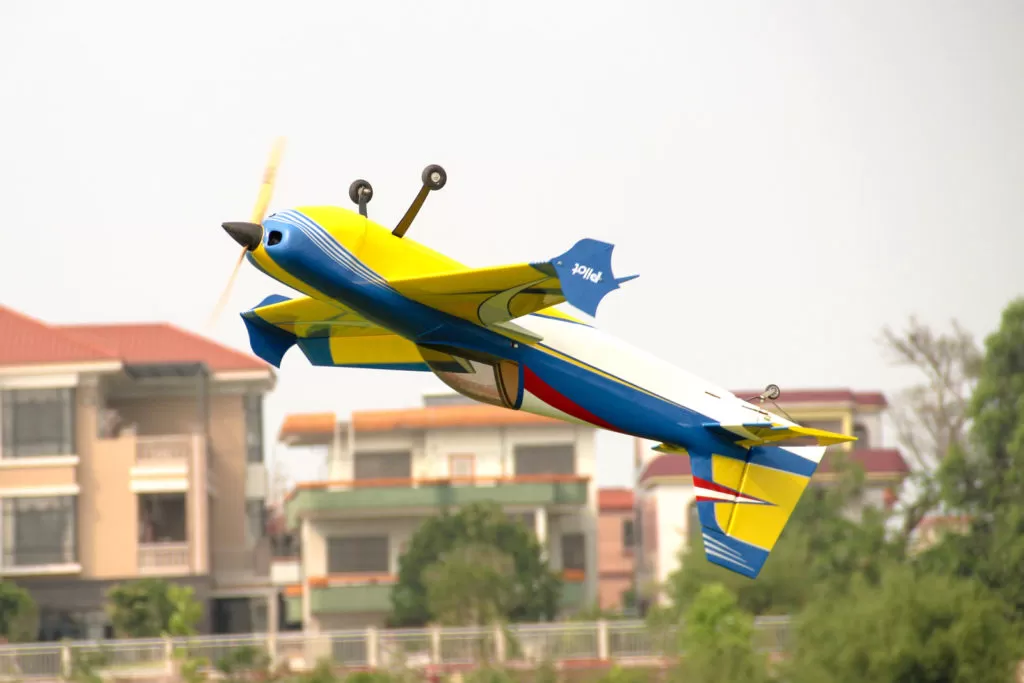

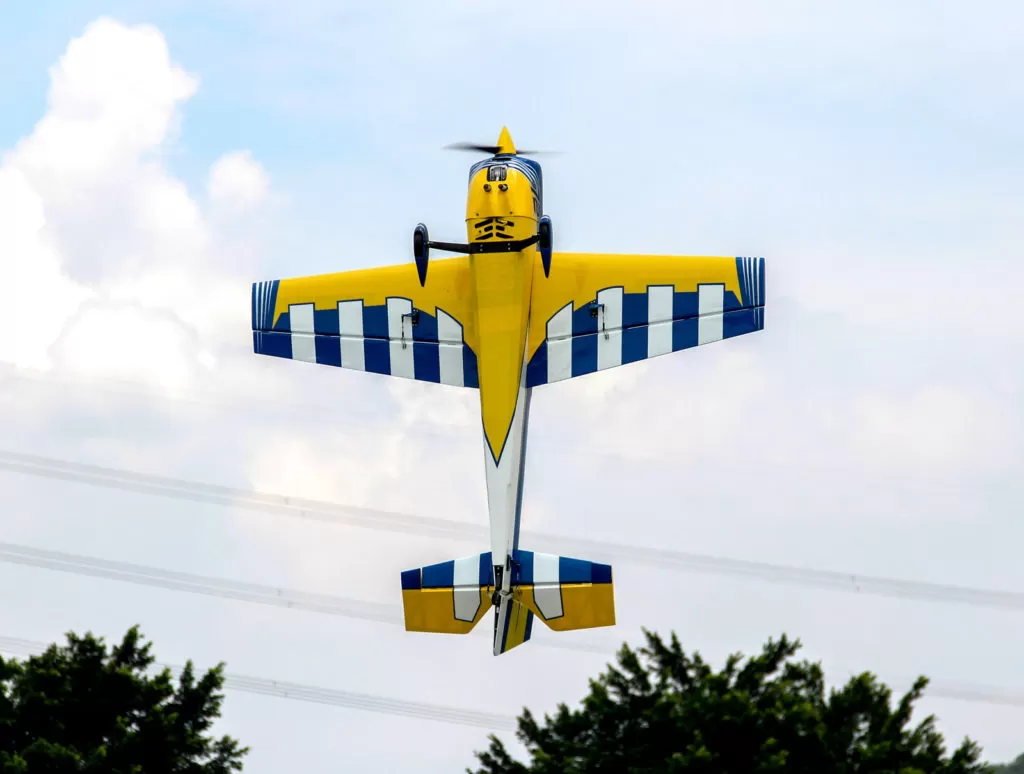

Pilot-RC Laser 73IN 06 (Blue/Yellow/White) PIL631

Description

Pilot-RC Laser 73IN 06 (Blue/Yellow/White) PIL631

You wanted it, Pilot-RC delivered! Another new size Laser, this time for 30-40cc engines or electric power!

Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.

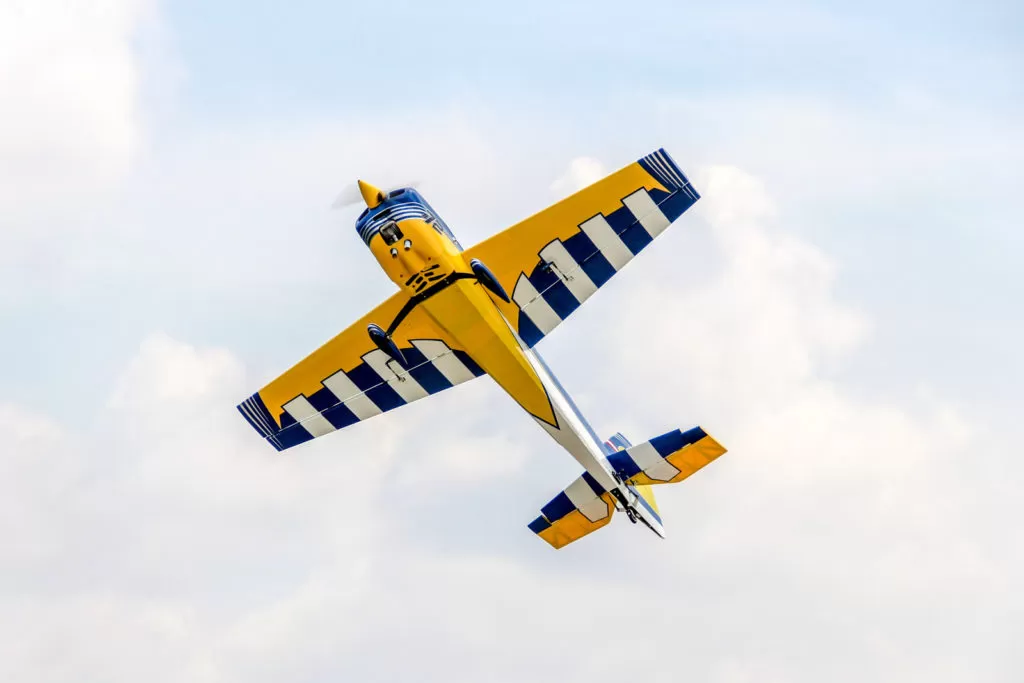

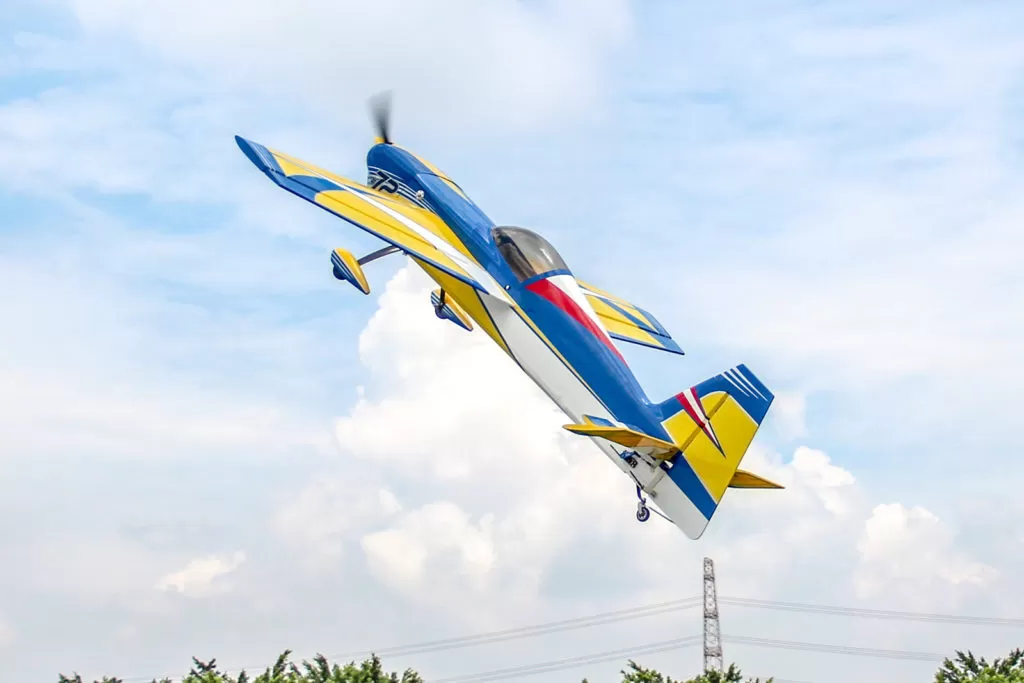

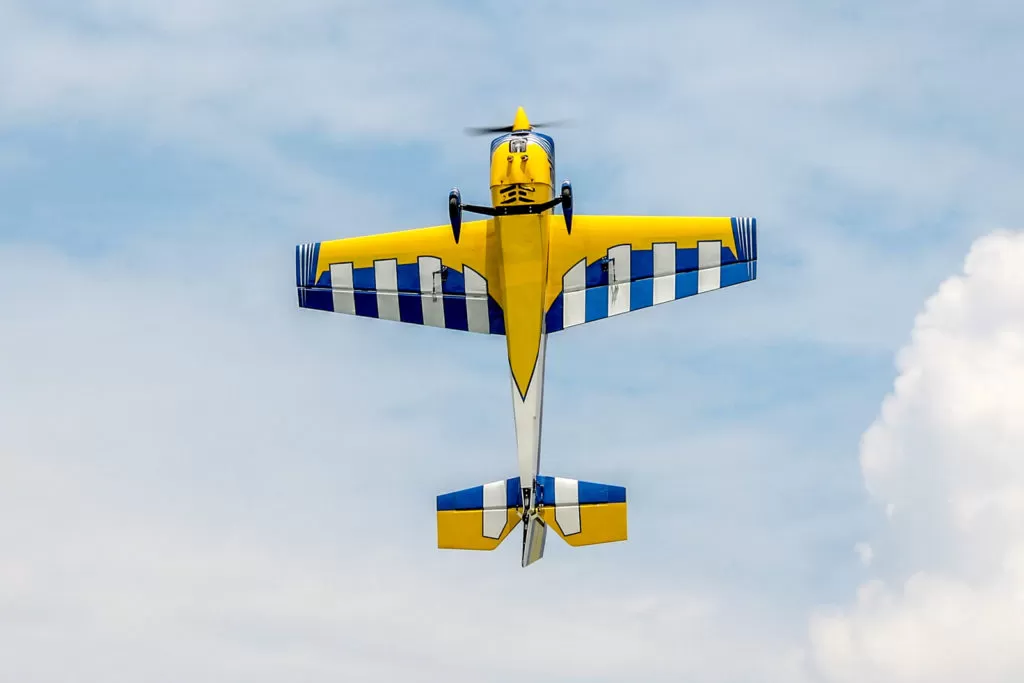

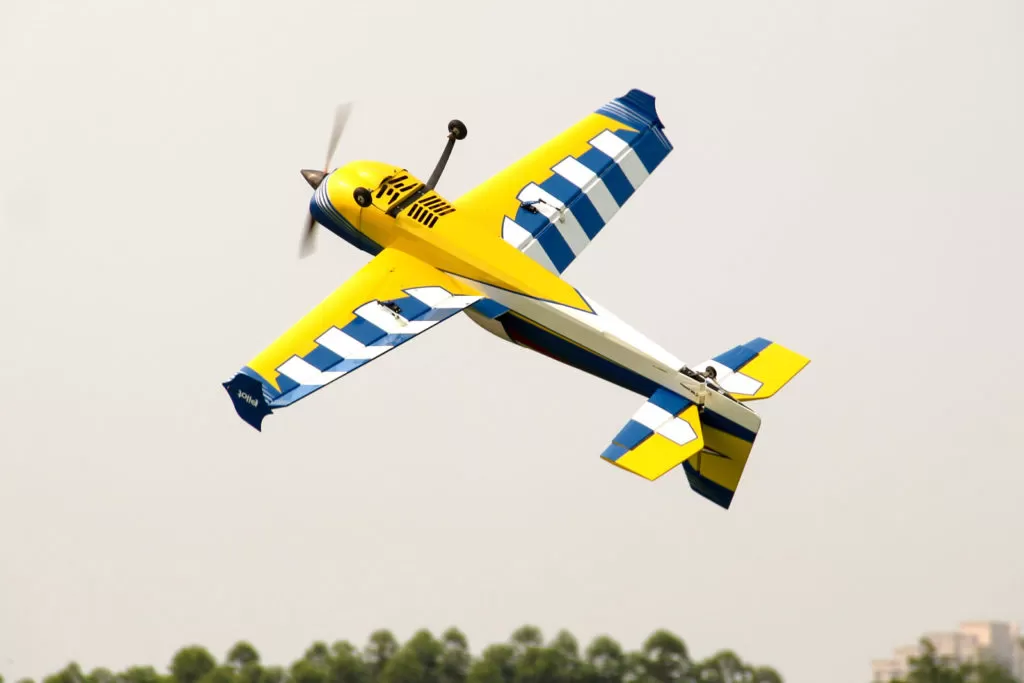

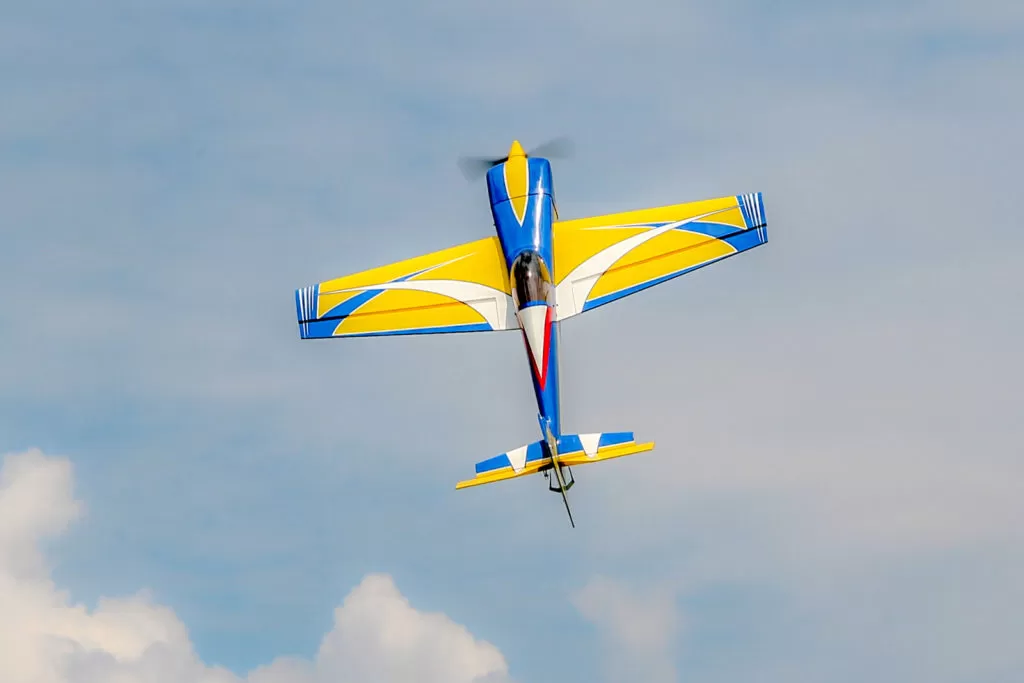

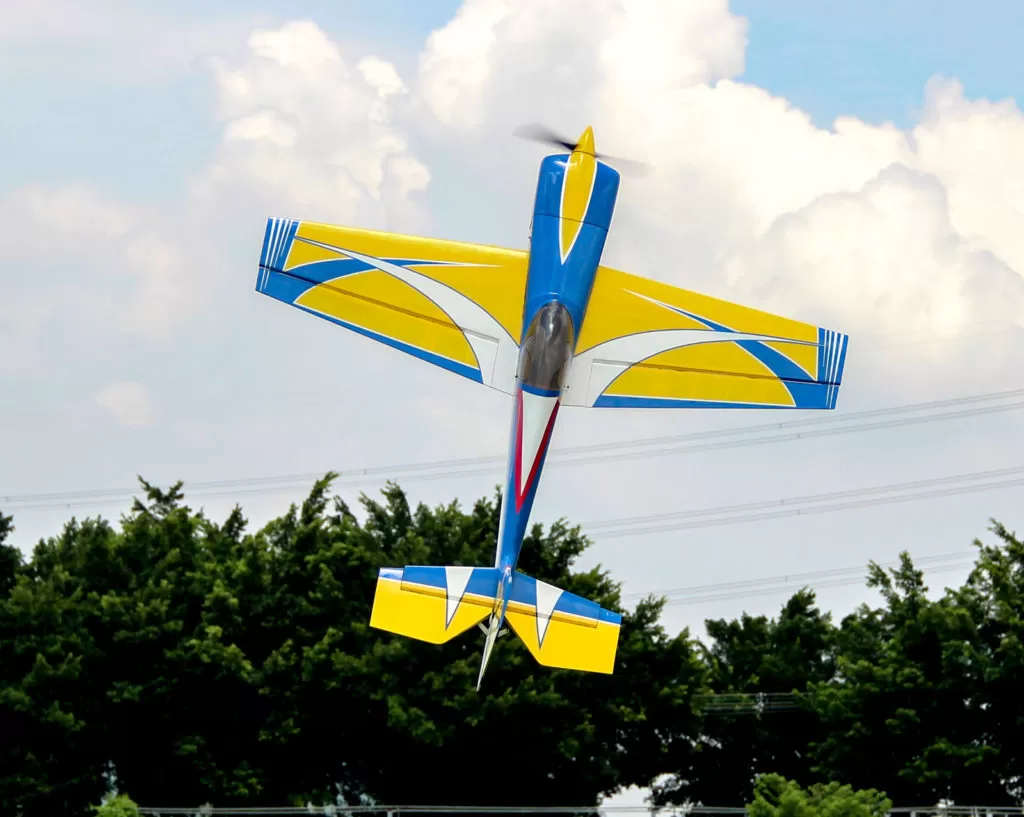

You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

Pilot-RC Laser 73IN 06 FEATURES
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Easy canister installation due to open construction
Removable wings
Laser engraved motor mounting position
Pull-Pull system for Rudder servo
Cowl fits both gasoline and electric motors
Can use single elevator servo, or choose to split the elevator half and use two separate servos.
single cylinder and twin cylinder engines!

SPECIFICATIONS
Model: Laser
Wingspan: 73in (1.850mm)
Length: 69.3in (1.760mm)
Wing area: 1,084sq in (6,966sq cm)
Weight: 14.75lbs (5.2kg)

INCLUDED HARDWARE
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner

REQUIRED HARDWARE (NOT SUPPLIED)
Motor: 30-40cc or equivalent electric
Servos: 4 or 5 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 or x2 for the elevator (choose if you use joint or split elevator) and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

RECOMMENDED HARDWARE:
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: 4 x Pilot-RC 1.6in Aluminium arms (PIL302) | 1 x Pilot-RC 3.2in Offset Double Aluminium Servo Arm (PIL388)
Engine: DLE-35RA Two-Stroke Petrol Engine or DLE-40 Twin Two-Stroke Petrol Engine
Wingbags: Pilot-RC Wing Bag for 35cc Aerobatic Plane

BUILD INFORMATION
Pilot-RC Slick Cowl Size
A: 244mm – B: 242mm – C: 250mm – D: 255mm

Pilot-RC Slick Exhaust Tunnel Size
A: 253mm – B: 71mm – C: Unlimited – D: 82m – E: 129mm – F: 157mm
Due to the open tunnel design in the Laser, there is no backplate (measurement C) so there is no limit to the length of exhaust that can be used.

Pilot-RC Slick Rudder Horns and Pull Pull Location
A: 71mm – B: 125mm – C: 12mm – D: n/a – E: 8.5mm

SERVO EXTENSION LENGTHS
Throttle: No extension required
Each aileron: 15cm (to reach receiver direct)
Each elevator: 80cm
Rudder: Pull pull, no extension required

CENTRE OF GRAVITY
137mm – Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

For information on Local Clubs or news within the flying world BMFA, click the highlighted tabs.

Specification

Aircraft Type	Sports & 3D
Assembly	ARTF & PNP
Brand	Pilot RC
Power	Electric, Engine
