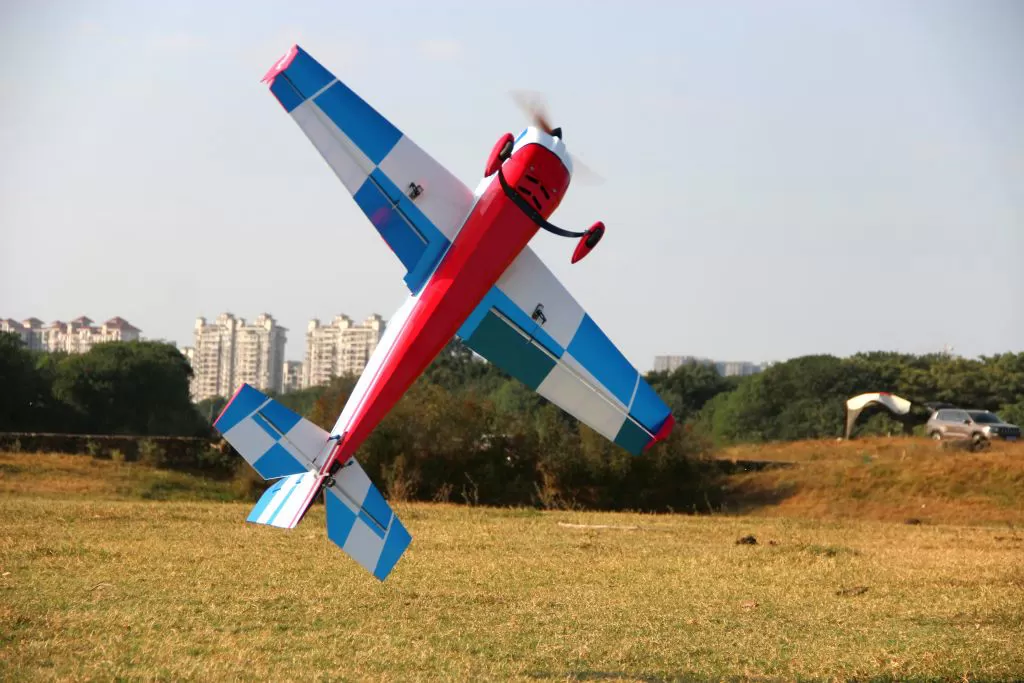

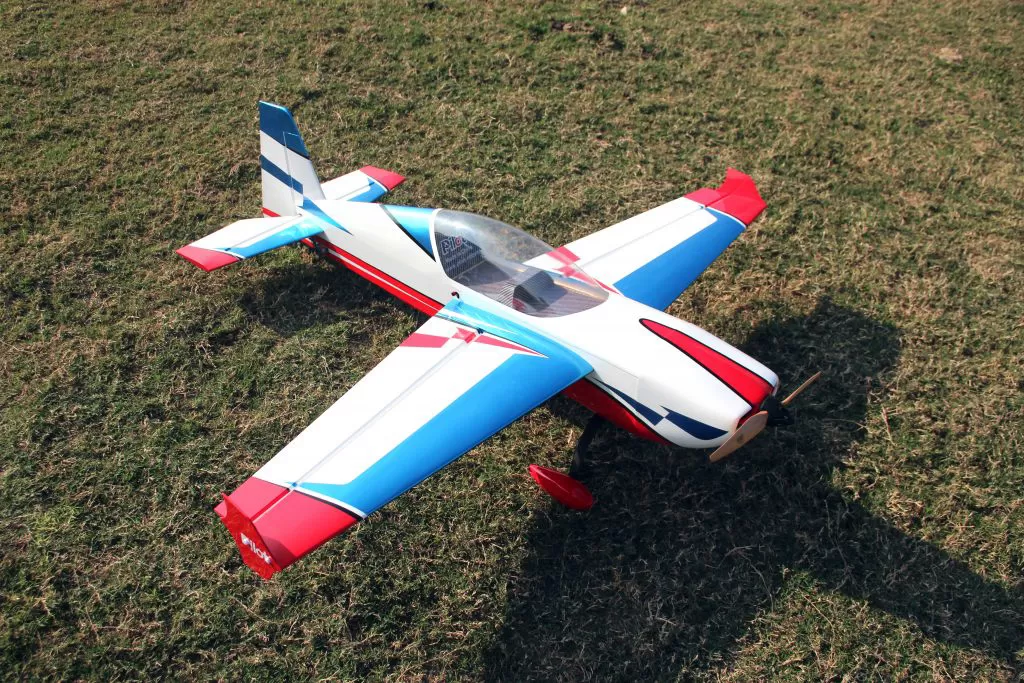

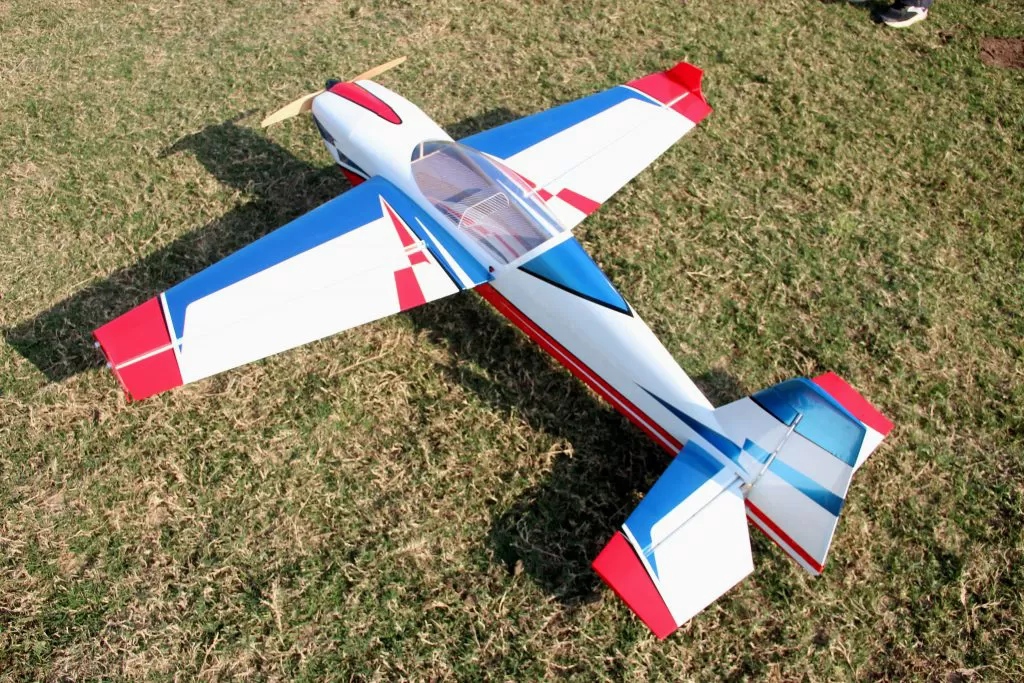

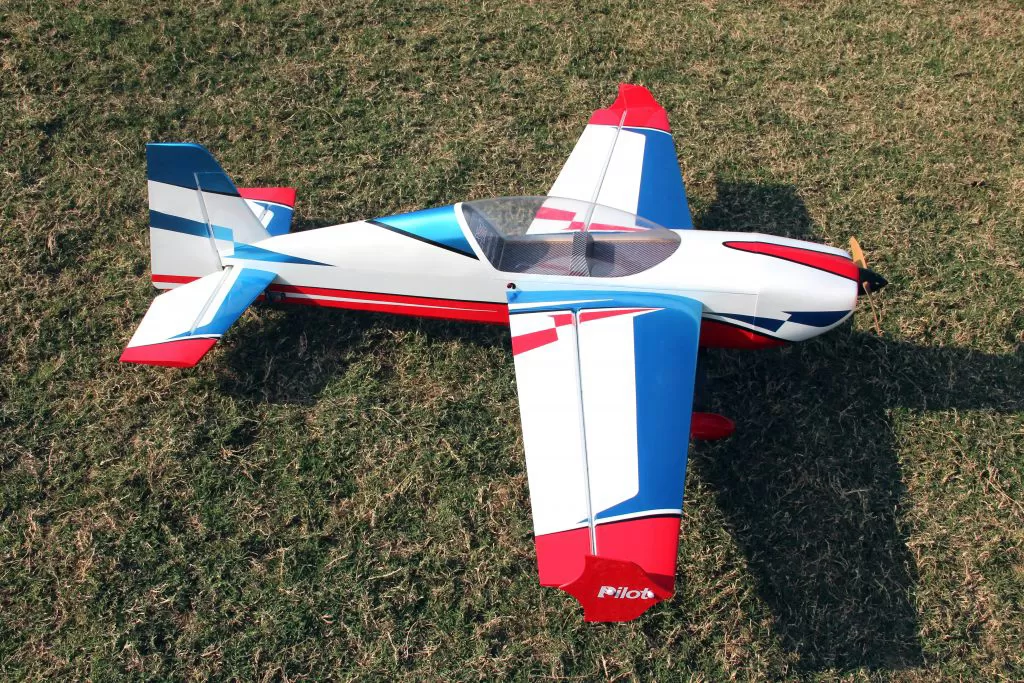

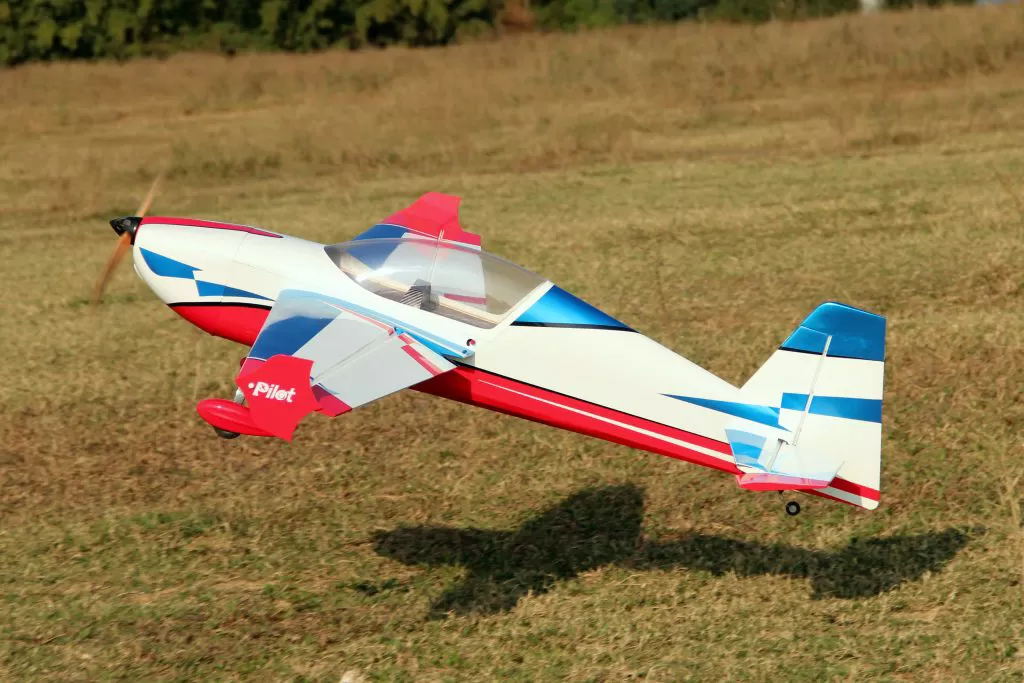

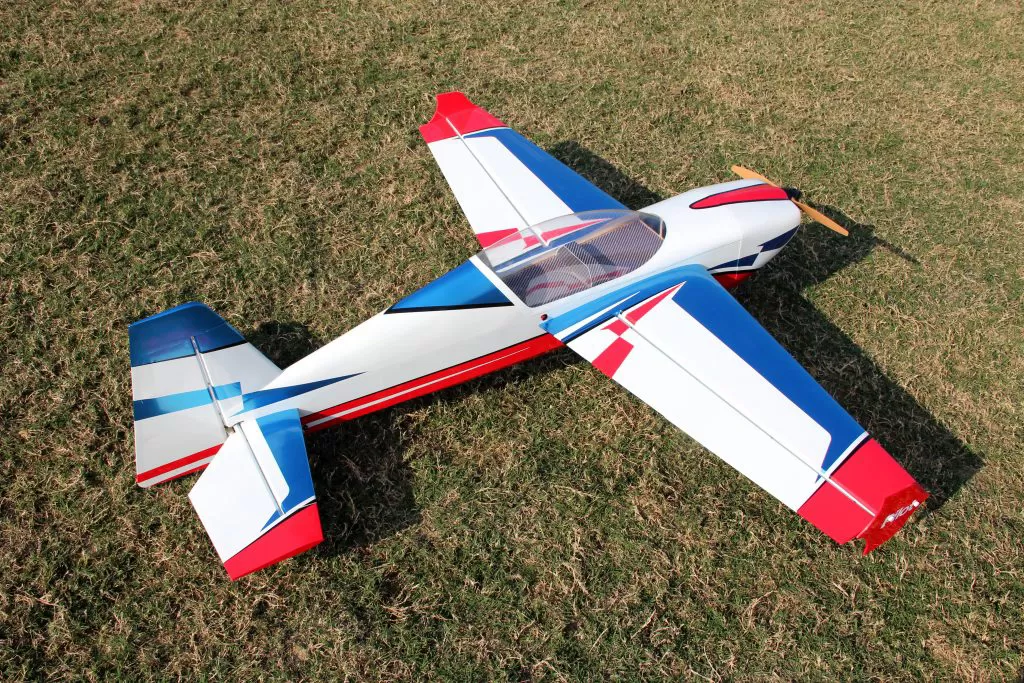

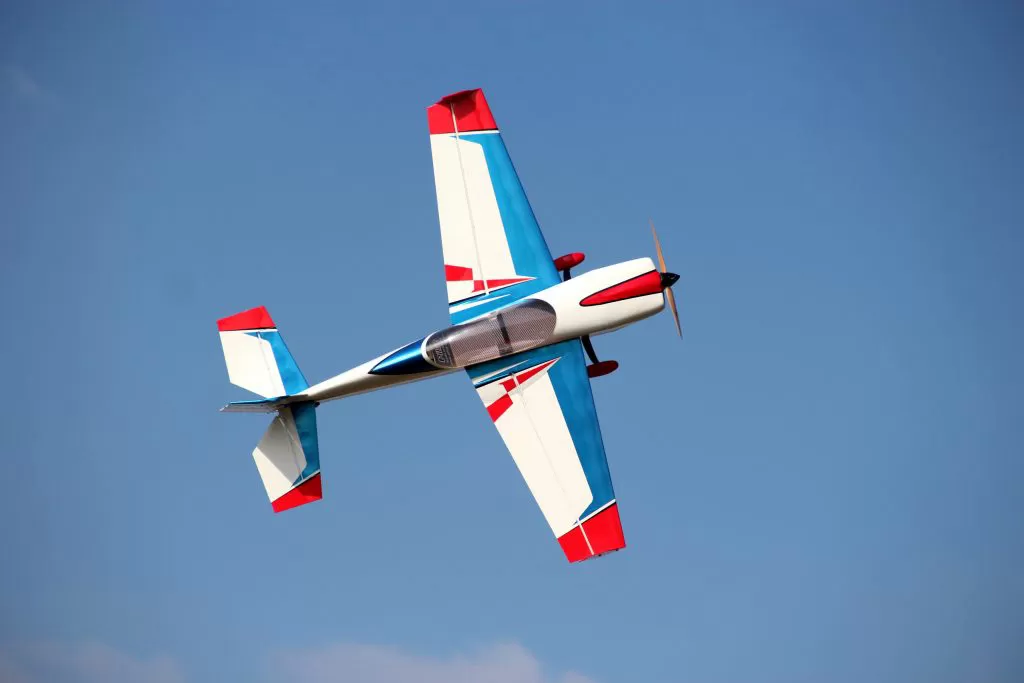

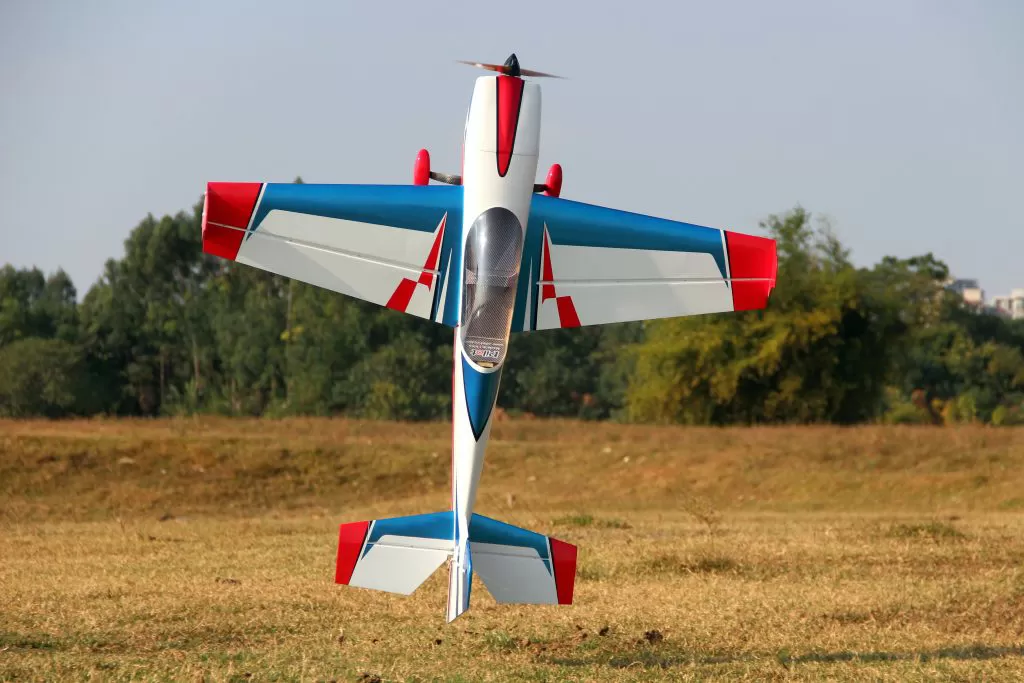

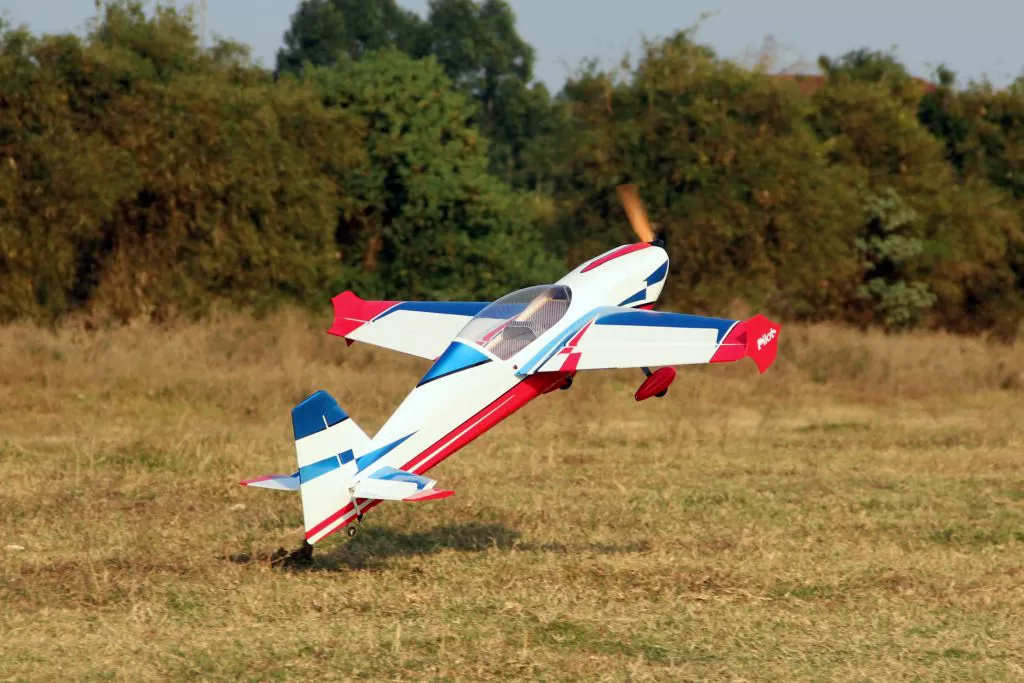

Pilot-RC Extra NG 67IN 02 (Red/Blue/White) PIL669

Description

Pilot-RC Extra NG 67IN 02 (Red/Blue/White) PIL669

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

SPECIFICATIONS:
Model: Extra NG
Wingspan: 67in (1.7m)
Length: 65.4in (1.66m)
Wing area: 872sq in (5,632sq cm)
Weight: 8.1lbs (3.7kg)

Pilot-RC Extra NG 67IN FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
NEW! Patented quick assembly system for SFG.
Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Removable wings
Laser engraved motor mounting position
Designed for both 20cc engine or electric motor
Internally mounted cowling – so no external screws exposed
Included servo extension wires and wing bags
Push pull rudder link for more precise and direct response
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Included wing bags
Included extension wires
Pre-prepared hinges ready to be installed and pre-mounted canopy
Fuel tank, fuel dot and fuel tubing pre-prepared
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Included spinner

REQUIRED HARDWARE:
Motor: 20cc or equivalent electric
*Please note that the setup of this plane allows both electric or gas engines, however in order to use a gas engine, the firewall and engine box must be reinforced.
Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for elevator and x1 for rudder
*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm) however the wood has been prepared and marked, should you wish to enlarge in order to accept standard size servos.
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

RECOMMENDED HARDWARE:
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: MacGregor Heavy Duty Servo Arms (ACC0017) (Please note these arms are supplied with Pilot-RC 67in Aircraft Power Pack with Servos (PIL408))
Electric Motor & ESC: 67in Aircraft Power Pack (PIL406) or 67in Aircraft Power Pack with Servos (PIL408)

BUILD INFORMATION
Pilot-RC Slick Cowl Size
A: 145mm – B: 215mm – C: 225mm – D: 202mm

Pilot-RC Slick Exhaust Tunnel Size
A: 183mm – B: 68mm – C: 183mm – D: 76mm – E: 110mm – F: 143mm

Pilot-RC Slick Rudder Horns and Pull Pull Location
A: mm – B: mm – C: N/A – D: mm

SERVO EXTENSION LENGTHS
Throttle: No extension required
Each aileron: 10cm (to reach receiver direct)
Each elevator: 70cm
Rudder: 70cm

CENTRE OF GRAVITY
132mm – Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

For information on Local Clubs or news within the flying world BMFA, click the highlighted tabs.

Specification

Aircraft Type	Sports & 3D
Assembly	ARTF & PNP
Brand	Pilot RC
Power	Electric, Engine
