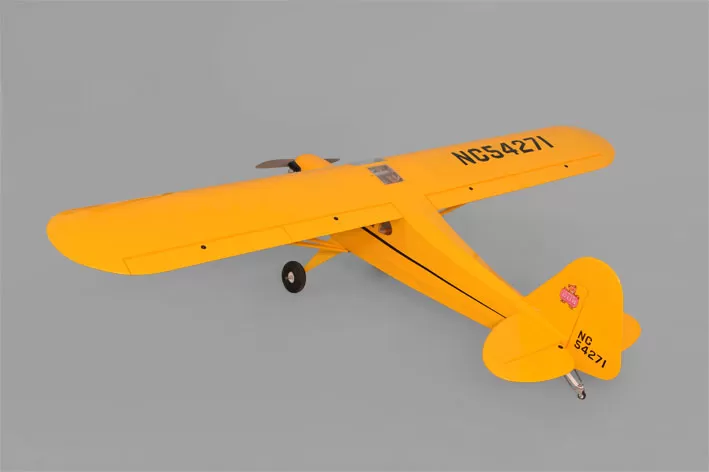

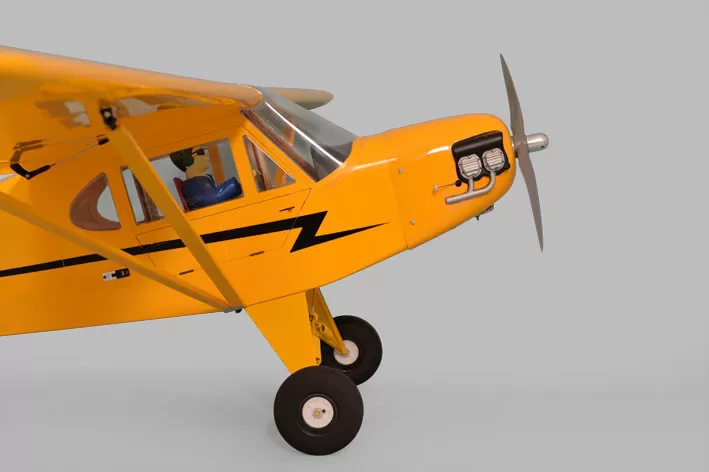

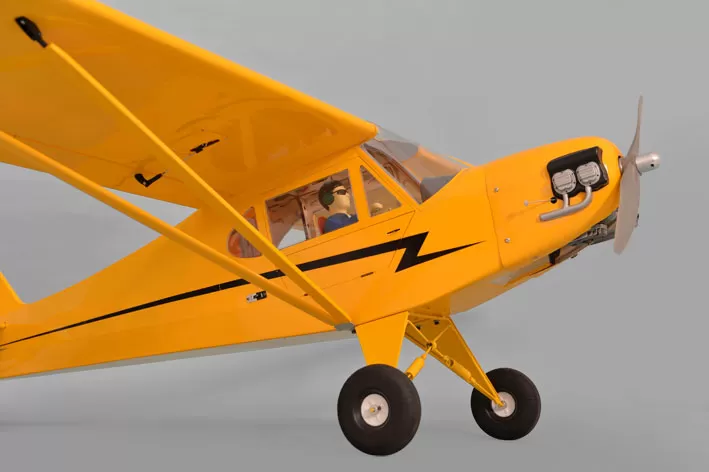

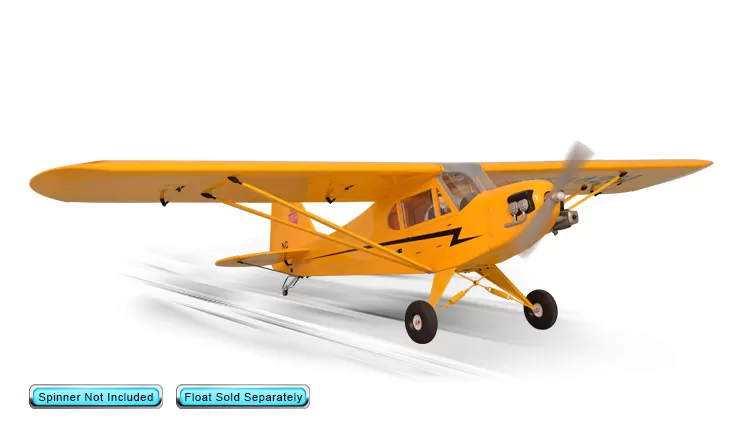

Phoenix Piper J3 Cub 2300mm 1.20-.20cc GP/EP ARTF PMA160

Description

Phoenix Piper J3 Cub 2300mm 1.20-.20cc GP/EP ARTF PMA160

Phoenix Piper J3 Cub Features:
– Superb flying characteristics, plus an accurate scale outline
– Functional panel flaps
– Two-pieces Wing – Making assembly and transport super convenient
– Hard points for mounting the scale float kit (sold separately) are already built into the fuselage
– Quick-connect, streamlined wing struts
– Operational cockpit side-doors
– Designed for compatibility with both GP and EP flight
– Extremely lightweight laser-cut all-wood construction

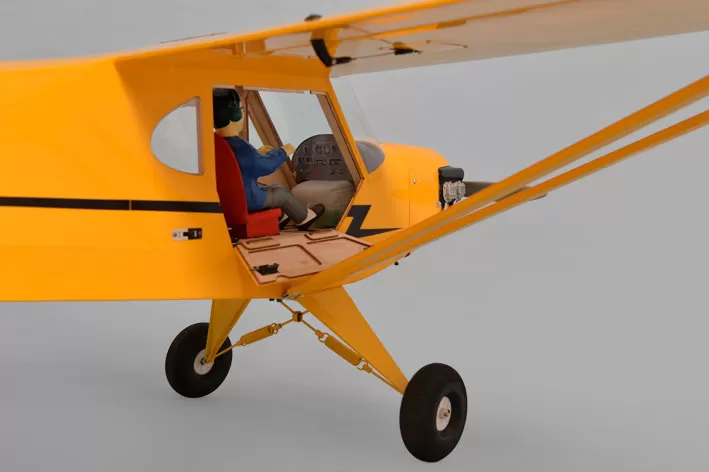

– Cockpit and instrument panel and pilot included
– High-quality hardware package included

Technical data
– Wingspan: 2300mm (90.5in)
– Length: 1541mm (60.6 in)
– Flying weight: 6000-6500 g
– Wing area: 78.6 dm2
– Wing loading: 76.3g/dm2
– Wing type: Naca airfoils
– Spinner size: scale type (not included)
– Radio: 8 channel minimum (not included)
– Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
– Recommended receiver battery: 6.0V 2400/2600mAh NiMH (not included)
– Servo mount: 21mm x 42 mm
– Propeller: suit with your engine

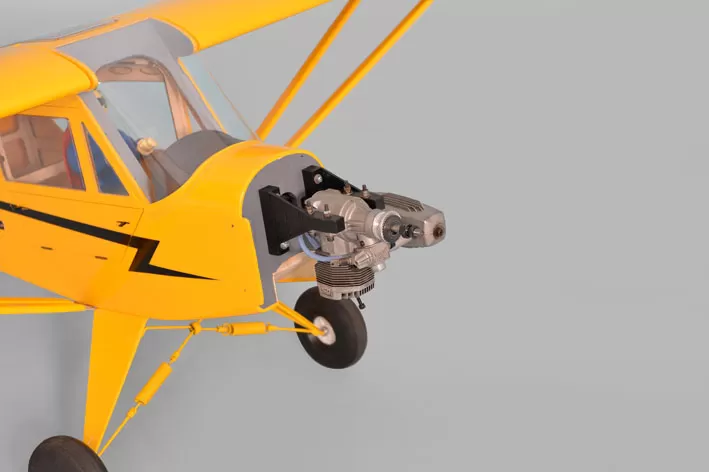

– Engine: .120 two stroke glow engine/ 20 CC two stroke gas engine (not included)

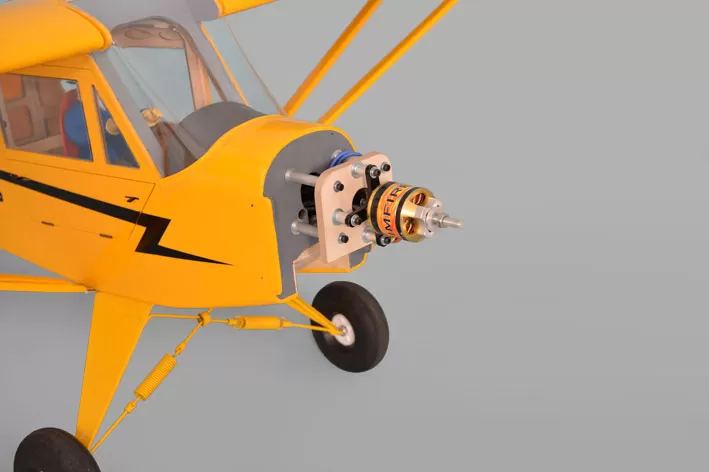

– Motor: brushless outrunner 2000-2400 W, 450 KV (not included)
– Experience level: Intermediate
– Plane type: Scale Civilian

RECOMMENDED MOTOR AND BATTERY SET UP
– Motor: 1.20 (not included)
– Propeller: 16×6 to 17×8 (not included)
– Lipo cell: 6S LiPo (not included)
– Esc: 80 Amp (not included)

Radio choices for this model: Aircraft Radios

For further information: on flying your RC plane in a safe and responsible manner please check out https://bmfa.org/

Specification

Aircraft Type	Scale
Assembly	ARTF & PNP
Brand	Phoenix Models
Power	Electric, Engine
