Black Horse Edge 540V3 30-35cc ARTF

Black Horse has a long history with the Edge 540 V3 and this is their latest design of the iconic aerobat. With a 2 metre wingspan (almost 79″), this model is perfect for petrol engines in the popular 30 – 35cc class.

With an accurate and well thought-out CAD designed balsa and plywood structure, the Edge 540 V3 has strength where needed, but without adding unecessary weight where it isn’t required. The result is a light, strong structure that gives the model a sparkling performance.

The two part wing is constructed from laser cut balsa and ply parts then part-sheeted in balsa before being covered in Oracover film. Wing joining is taken care of with an aluminium tube with front and rear locating pegs. A single servo with short, direct linkage is used for each aileron.

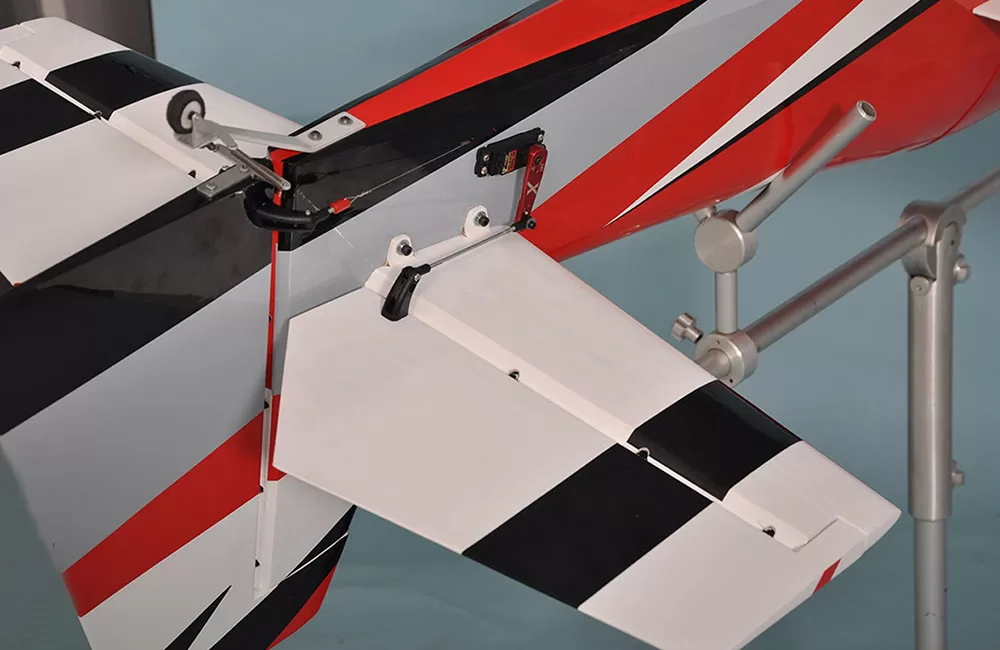

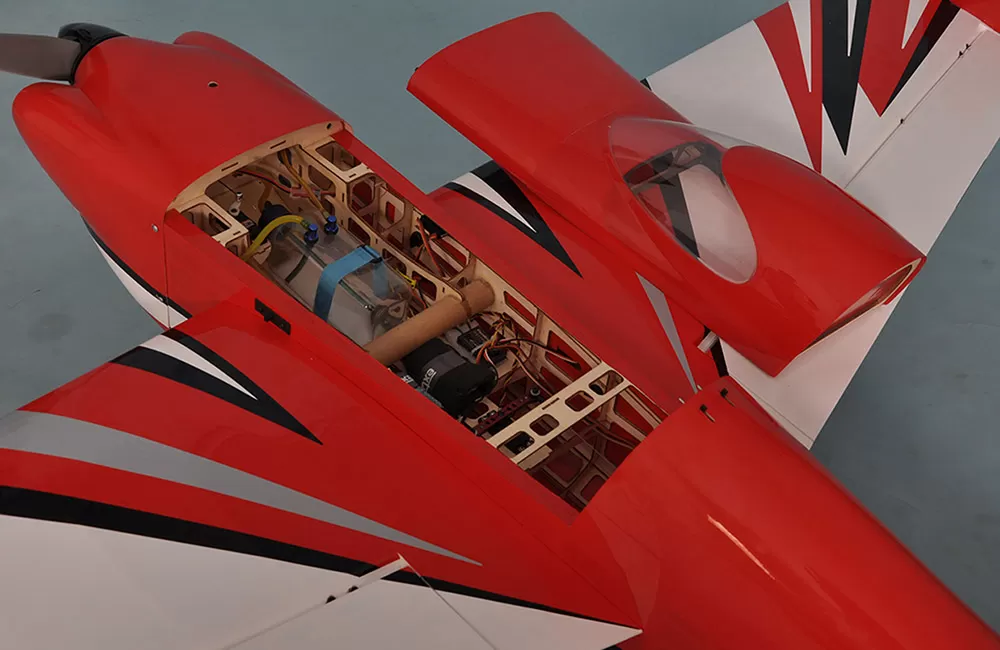

The fuselage is constructed from many interlocking lightened parts to form a strong, semi-monocoque structure. Twin elevator servos are mounted at the rear with short, slop-free heavy-duty linkages with the rudder being operated by closed loop.

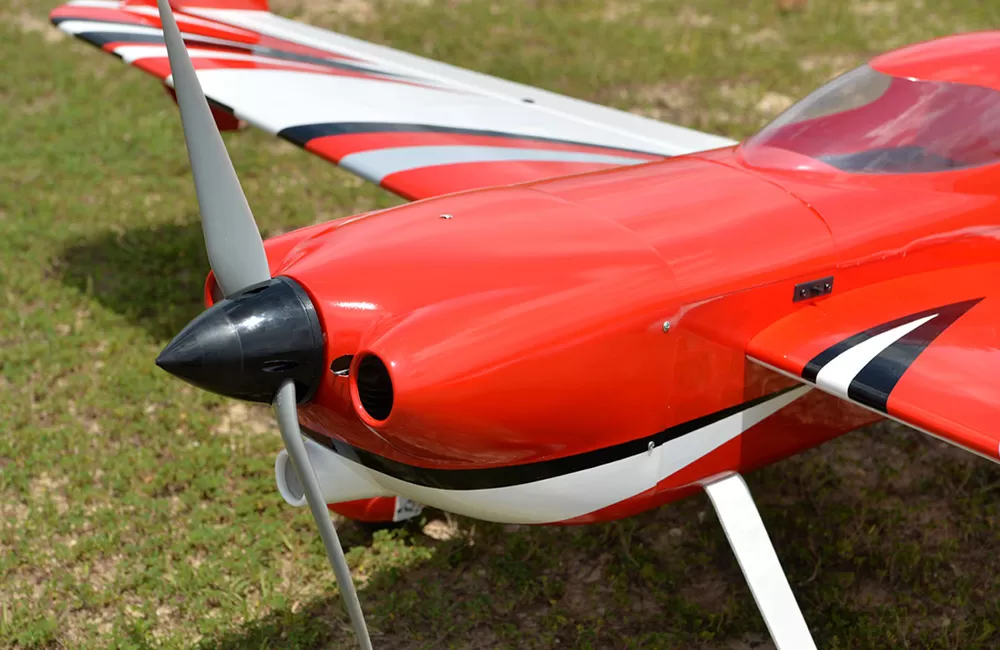

A huge, pre-painted glass-fibre cowl and spats are also supplied to keep the build time to a minimum.

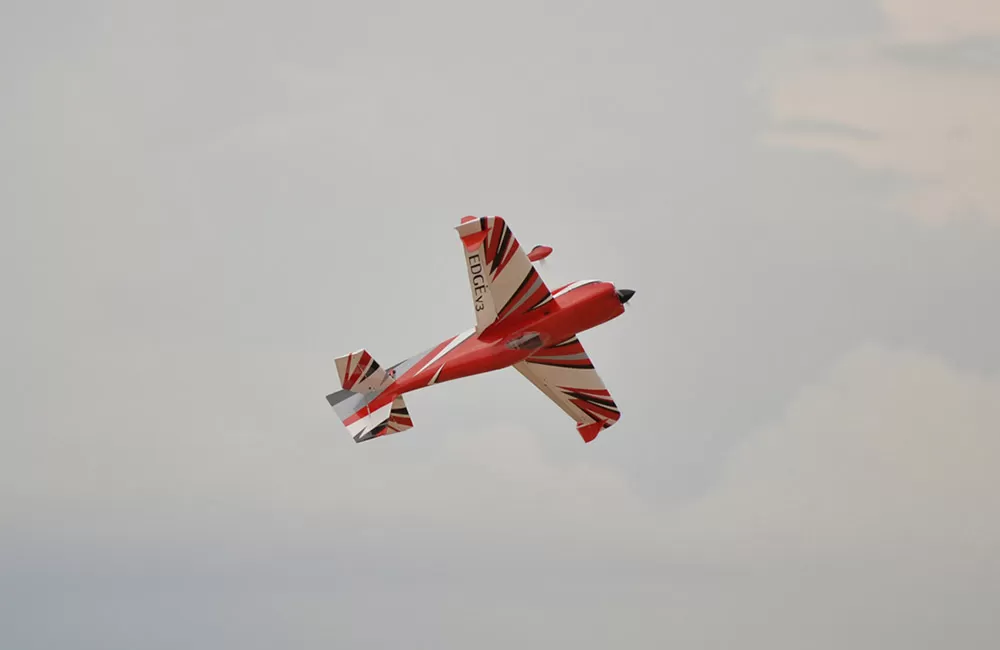

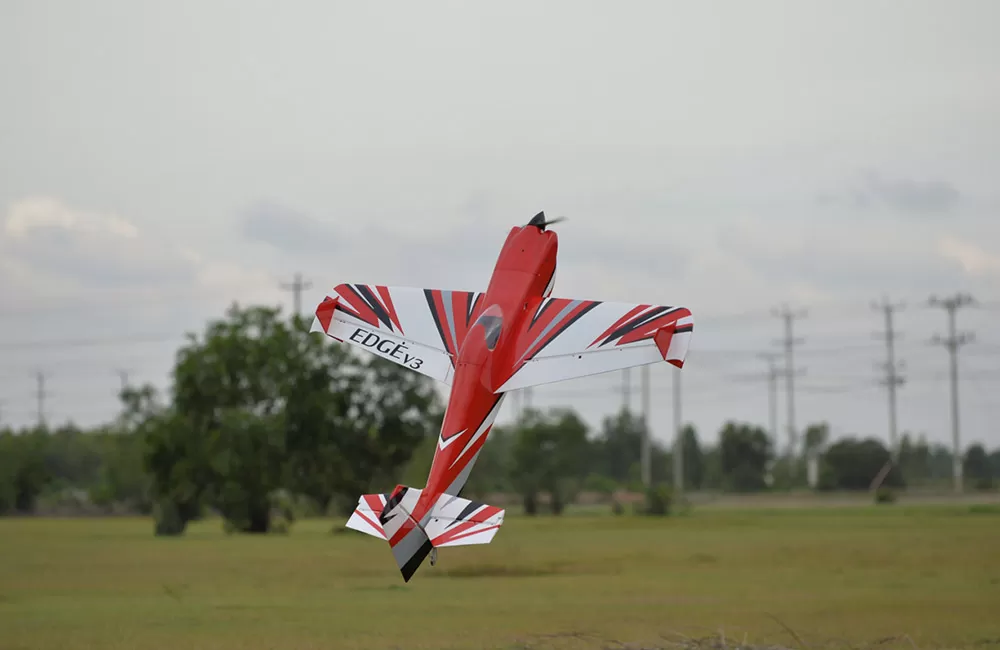

Transportation is easy due to the removeable wings and tailplane halves, making this a practical everyday model that will fit in all but the smallest cars. As you would expect, the flight performance is simply amazing,

Specification

Aerofoil: NACA

Wingspan: 2,000mm (78.74″)

Length: 1,850mm (72.83″)

Weight: 5.6kg (12.34 lbs)

Servos: 6 Standard High Torque (42 x 21mm) (Req.)

Radio System: 6+ Channels (Req.)

Wing Area: 75.76 dm2

Wing Loading: 73.91 g/dm2

Petrol Engine: 30 – 35cc 2-Stroke (Req.)

Carton Size: 1455 x590 x375mm – 10.5Kg gross weight
